Same model may have multiple batches, images only for reference.

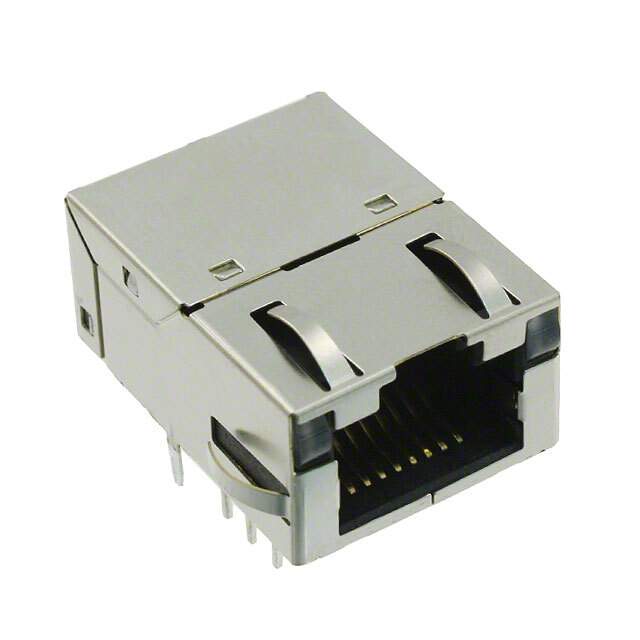

J0G-0001NL Real Image
Same model may have multiple batches, images only for reference.

J0G-0001NL

Part No J0G-0001NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
J0G-0001NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.445" (11.30mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number J0G-0001NL-ND,553-1661,J0G0001NL
Standard Package 70
Win Source Part Number 1333905-J0G-0001NL
Ultra Librarian 3D Model Ultra Librarian J0G-0001NL CAD Model

Description

The Pulse Electronics modular connector jack with magnetics is a shielded component.

  • Orientation: 90° angle (right)
  • Connector Type: RJ45
  • Termination: Solder
  • Number of Rows: 1
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Contact Material: Phosphor bronze
  • Height Above Board: 0.445" (11.30mm)
  • Housing Material: Thermoplastic
  • Shielding: EMI finger
  • Number of Ports: 1
  • Standard Package: 70
  • LED Color: Green and orange-yellow
  • Temperature Range: 0°C to 70°C
  • Compliance: RoHS compliant
  • Package: Tray package
