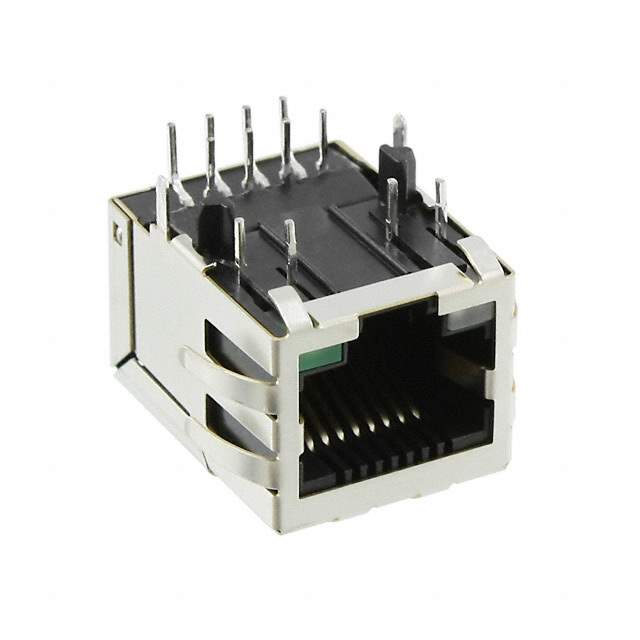

J0026D21GNL Real Image
Same model may have multiple batches, images only for reference.

J0026D21GNL

Part No J0026D21GNL
Manufacturer Pulse
Catalog Modular Connectors
Description RoHS peak wave solder temperature rating 260C | CONN MAGJACK 1PORT 100 BASE-TX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Network
Packaging Tube
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Yellow, Green - Green
Number of Cores per Jack 5
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0μin (0.38μm)
Shield Material Brass
Dielectric Material Thermoplastic
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 738907-J0026D21GNL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian J0026D21GNL CAD Model

Description

The Pulse Electronics Network 738907-J0026D21GNL connector is a tube-packaged connector with through-hole mounting style and board guide feature. The connector has RJ45 connector type, one row, and solder termination.

  • Packaging: Tube
  • Mounting Style: Through-Hole
  • Board Guide: Yes
  • Connector Type: RJ45
  • Rows: 1
  • Termination: Solder
  • Contact Finish: Gold (15.0μin (0.38μm))
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.545" (13.84mm)
  • Shielding: EMI Finger
  • Applications: 10/100 Base-TX
  • Orientation: 90-degree Angle (Right)
  • Ports: 1
  • LED Color: Yellow-Green
  • Cores Per Jack: 5
  • Tab Direction: Down
  • Shield Material: Brass
  • Dielectric Material: Thermoplastic
  • Temperature Range: 0°C ~ 70°C
  • Pack Quantity: 25
  • MSL Level: 1 (Unlimited)
