Same model may have multiple batches, images only for reference.

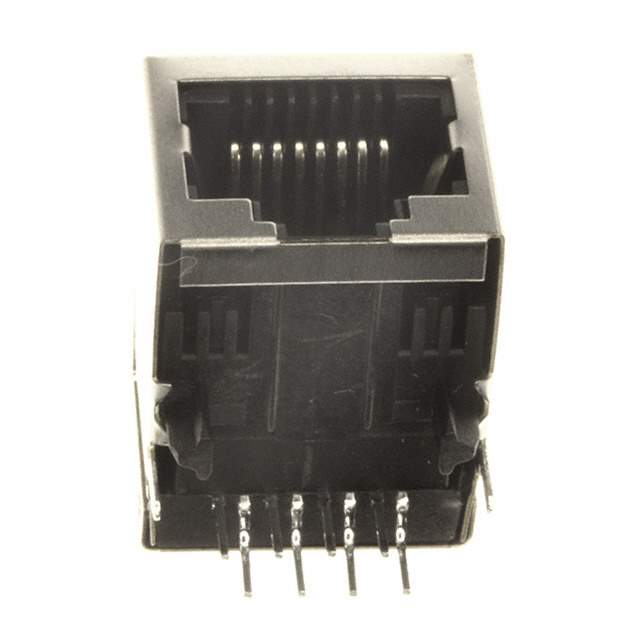

J00-0062NL Real Image
Same model may have multiple batches, images only for reference.

J00-0062NL

Part No J00-0062NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 10 BASE-TX PCB / 1 Port RJ45Through Hole 10 Base-TX, AutoMDIX
Datasheet
J00-0062NL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number J00-0062NL-ND,553-1480,J000062NL
Standard Package 30
Win Source Part Number 1333891-J00-0062NL
Ultra Librarian 3D Model Ultra Librarian J00-0062NL CAD Model

Description

The J00-0062NL is a modular connector jack with magnetics from Pulse Electronics.

  • Connector Type: RJ45
  • Shielding Feature: Shielding
  • Number of Ports: 1
  • Number of Rows: 1
  • Termination Style: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Height Above Board: 0.545" (13.84mm)
  • Shielded: Yes
  • Housing Material: Thermoplastic
  • ECCN: EAR99 compliant
  • Status: Obsolete
  • Package: Tray
  • Moisture Sensitivity Level: 1 (unlimited)
  • Also Known As: J00-0062NL-ND, 553-1480, and J000062NL
