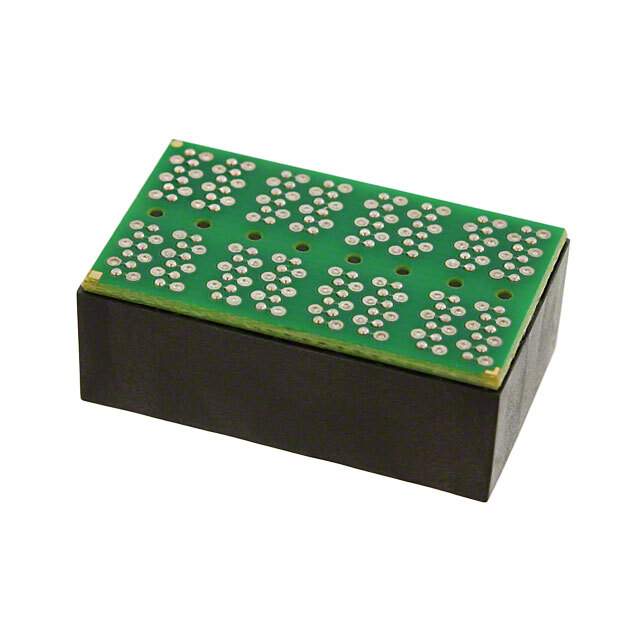

H6400NL Real Image
Same model may have multiple batches, images only for reference.

H6400NL

Part No H6400NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 600MA 4LN SMD / 4 Line Common Mode Choke Surface Mount 600mA DCR 65mOhm
Datasheet
H6400NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Network
Package Tray
Number of Lines 4
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 65mOhm
Temperature Range - Operating 0°C ~ 70°C
Mounting SMD (SMT)
Dimension 1.120" L x 0.680" W (28.45mm x 17.27mm)
Height (Max) 0.440" (11.18mm)
Package / Case 96-BGA Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 553-2714-ND,553-2714,H6400NL-ND,-H6400NL,553-2714-5
Standard Package 60
Win Source Part Number 989483-H6400NL
Ultra Librarian 3D Model Ultra Librarian H6400NL CAD Model

Description

The Pulse H6400NL is a common mode choke with a maximum current rating of 600mA.

  • Manufacturer: Pulse
  • Product: H6400NL
  • Type: Common Mode Choke
  • Maximum Current: 600mA
  • DC Resistance: 65mOhm
  • Operating Temperature: 0°C to 70°C
  • Category: Filters > Common Mode Chokes
  • Popularity: Low
  • Supply and Demand Status: Shortage
