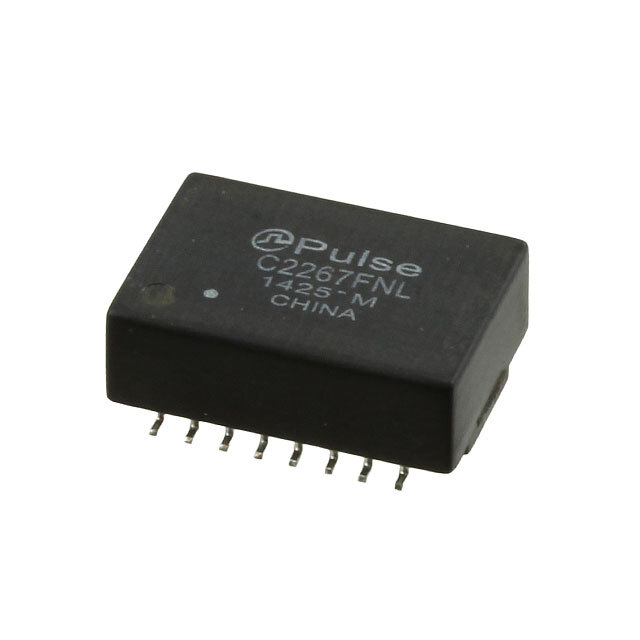

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse Electronics
Packaging Tube
Inductance 15µH
Mounting Type Surface Mount
Size / Dimension 0.386" L x 0.354" W (9.80mm x 9.00mm)
Height - Seated (Max) 0.425" (10.80mm)
Temperature Range - Operating 0°C ~ 70°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1481304-C2267FNL
Ultra Librarian 3D Model Ultra Librarian C2267FNL CAD Model
