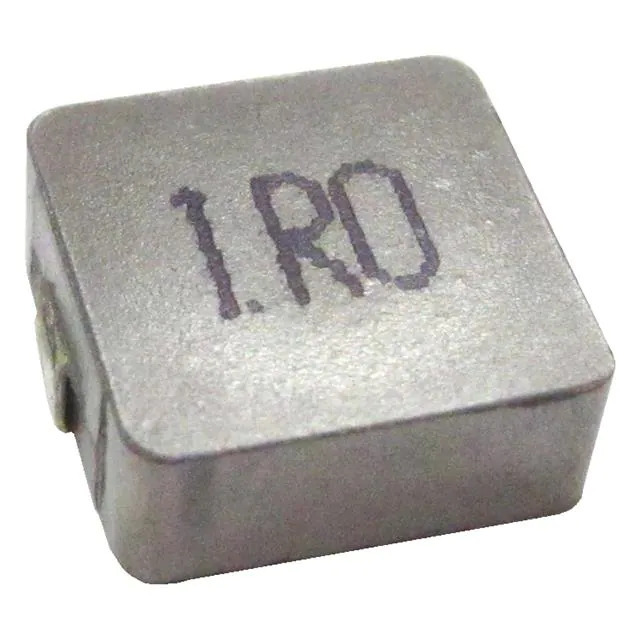

Same model may have multiple batches, images only for reference.
BMRA000404202R2MA1 Pulse
Same model may have multiple batches, images only for reference.

BMRA000404202R2MA1

Part No BMRA000404202R2MA1
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.2UH 3A 58 MOHM SMD
Datasheet
BMRA000404202R2MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series BMRA
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 58mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.161" L x 0.181" W (4.10mm x 4.60mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370304-BMRA000404202R2MA1
Ultra Librarian 3D Model Ultra Librarian BMRA000404202R2MA1 CAD Model

Description

The 1370304-BMRA000404202R2MA1 is a fixed inductor manufactured by Pulse Electronics.

  • Series: BMRA
  • Package: Nonstandard
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Height: 0.079" (2.00mm)
  • Size: 0.161" L x 0.181" W (4.10mm x 4.60mm)
  • Inductance: 2.2μH
  • Current Rating: 3A
  • DC Resistance (DCR): 58mOhm
  • REACH: Unaffected
  • ECCN: EAR99
