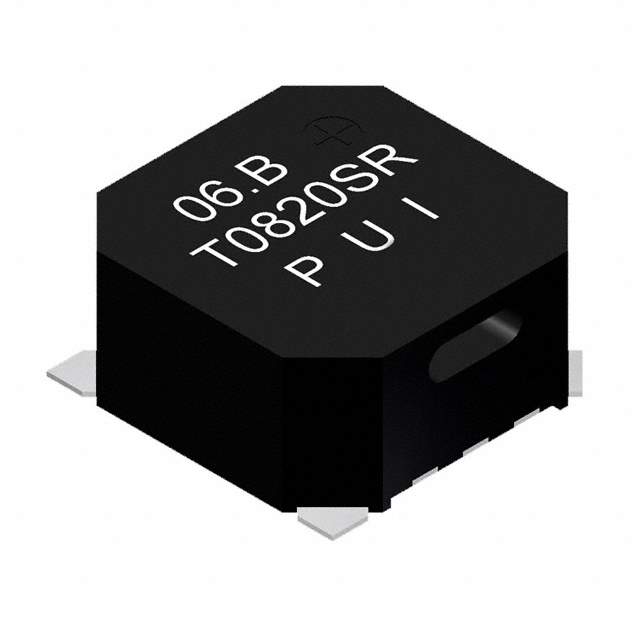

SMT-0820-S-R Real Image
Same model may have multiple batches, images only for reference.

SMT-0820-S-R

Part No SMT-0820-S-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 4-6V SMD / Audio Transducer Electromagnetic 4Vp-p 6Vp-p 70mA 5Vp-p 85dBAdBA 1500Hz to 2500Hz Surface Mount Solder Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Series SMT
Packaging Reel package
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 5V
Voltage Range 4 ~ 6V
Frequency 2kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Operating Supply Current 70mA
Port Location Side
Operating Temperature Range -30°C ~ 70°C
Mounting SMD
Termination Solder Pads
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 796001-SMT-0820-S-R
Popularity Medium
Supply and Demand Status Limited
Family Name SMT-0820-S-R
Introduction Date August 10, 2005
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMT-0820-S-R CAD Model

Description

The PUI Audio SMT-0820-S-R is a magnetic transducer designed for use in audio products. With a frequency of 2kHz and a voltage range of 4-6V, this transducer operates in single tone mode and has a sound pressure level of 85dB @ 5V, 10cm.

  • Drive: Externally Driven
  • Current Supply: 70mA
  • Temperature Range: -30°C to 70°C
  • Height: 0.177 inches
  • Mounting: Surface Mount
  • Termination: Solder Pads
