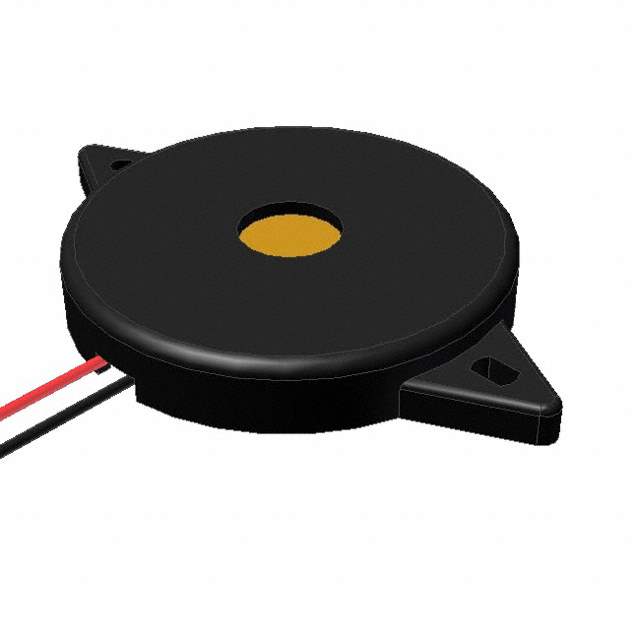

AT-3045-TF-LW110-R Real Image
Same model may have multiple batches, images only for reference.

AT-3045-TF-LW110-R

Part No AT-3045-TF-LW110-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO XDCR 1-50V CHASSIS
Datasheet
AT-3045-TF-LW110-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Packaging Bulk
Status Active
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating 10V
Voltage Range 1 to 50V
Frequency 4.5kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 97dB @ 10V, 10cm
Operating Supply Current 11mA
Port Location Top
Temperature Range - Operating -30°C to 85°C
Mounting Panel Mount, Flange
Termination Wire Leads
Height - Seated (Max) 0.220" (5.60mm)
Win Source Part Number 1019350-AT-3045-TF-LW110-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AT-3045-TF-LW110-R CAD Model

Description

The PUI Audio AT-3045-TF-LW110-R piezo transducer is a panel-mounted component designed for use in audio products.

  • Voltage Rating: 10V
  • Frequency: 4.5kHz
  • Mode: Single tone
  • Sound Pressure Level: 97dB @ 10V, 10cm
  • Drive: Externally driven
  • Current Supply: 11mA
  • Temperature Range: -30°C to 85°C
  • Height: 0.220 inches
  • Termination: Wire leads
  • Mounting Type: Flange
