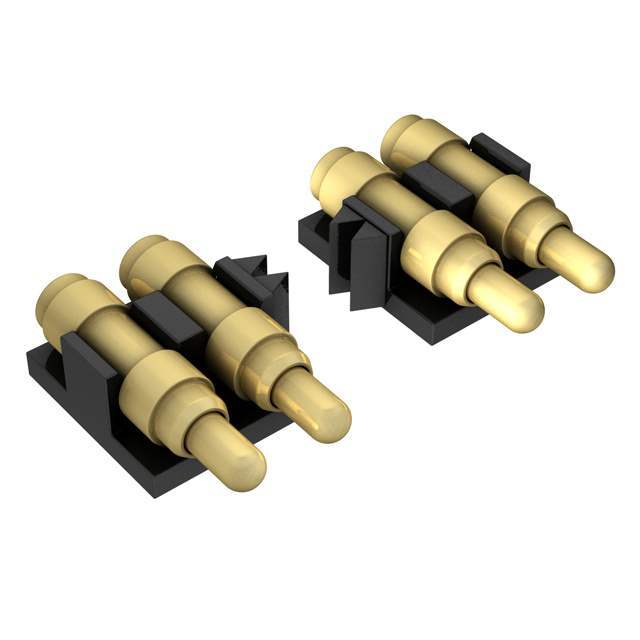

Same model may have multiple batches, images only for reference.

8PM-11-0010-02-260191

Name: 8PM-11-0010-02-260191
Brand: Preci-Dip
SKU: WS1305413
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	8PM-11-0010-02-260191
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN SPRING PISTON 10POS R/A SMD
Datasheet	8PM-11-0010-02-260191 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1305413-8PM-11-0010-02-260191
Manufacturer	Preci-Dip
Category	Connectors, Interconnects Rectangular Connectors Spring Loaded
Packaging	Tape & Reel (TR)
Part Status	Active
Connector Type	Piston
Number of Contacts	10
Pitch (mm)	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Surface Mount, Right Angle
Contact Finish Thickness	10.0µin (0.25µm)
Ultra Librarian 3D Model	Ultra Librarian 8PM-11-0010-02-260191 CAD Model

Alternative Products

Description

The sockets withstand the following environmental tests without mechanical and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH, 1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min
