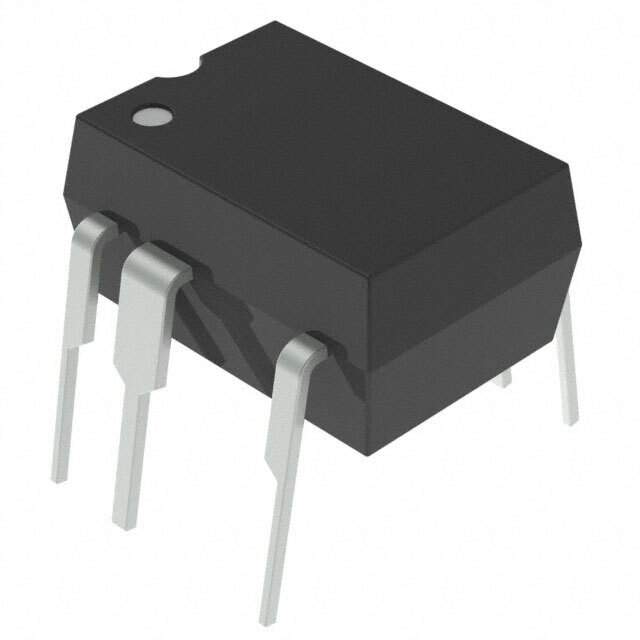

The TOP253PN is a 15W integrated Off-Line Switcher with advanced feature set and extended power range. This enhanced EcoSmart™ switcher incorporates a 700V power MOSFET, high voltage switched current source and PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.

The TOP253PN is designed to be easy to use and provides a high level of performance and integration. It features a multi-mode operation that maximizes efficiency at all loads, from light load to full load. The TOP253PN also features a low height profile, making it ideal for adapters where space is limited.

The TOP253PN includes a number of features that make it a reliable and robust solution for a variety of applications. These features include:

• Line under-voltage detection to prevent turn-OFF glitches
• Line over-voltage shutdown to extend line surge limit
• Accurate programmable current limit
• Heat sink connected to source for low EMI
• Fully integrated soft-start for minimum start-up stress

The TOP253PN is a versatile device that can be used in a wide range of applications, including:

• AC/DC adapters
• Set-top boxes
• LCD TVs
• DVD players
• Printers
• Scanners
• Power supplies for industrial and consumer electronics

Features and Benefits

• Multi-mode operation maximizes efficiency at all loads
• Low height profile ideal for adapters where space is limited
• Line under-voltage detection to prevent turn-OFF glitches
• Line over-voltage shutdown to extend line surge limit
• Accurate programmable current limit
• Heat sink connected to source for low EMI
• Fully integrated soft-start for minimum start-up stress
• Easy to use, high level of performance and integration

Applications

• AC/DC adapters
• Set-top boxes
• LCD TVs
• DVD players
• Printers
• Scanners
• Power supplies for industrial and consumer electronics

Conclusion

The TOP253PN is a highly versatile and integrated Off-Line Switcher that is ideal for a wide range of applications. It offers a number of features and benefits, including multi-mode operation for high efficiency, a low height profile for space-constrained applications, and a variety of protection features for reliability and robustness.

Additional Information

The TOP253PN is available in a DIP-8 package and is RoHS compliant. It is also supported by a comprehensive design suite, including a datasheet, application notes, and reference designs.
