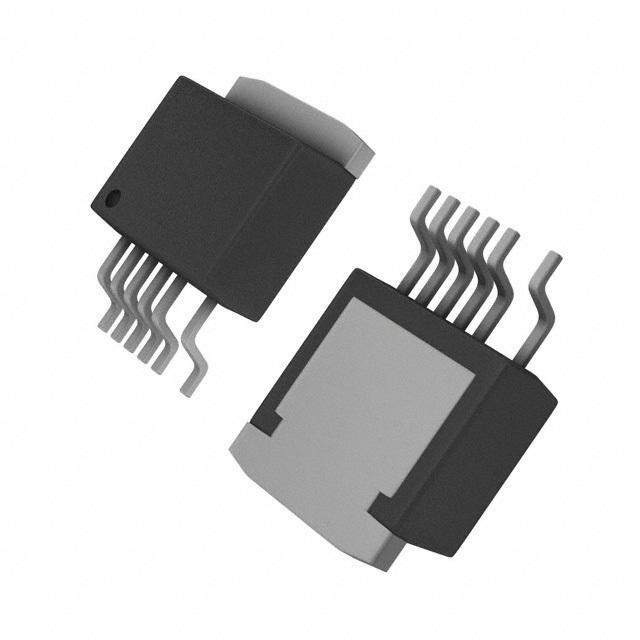

TOP246R-TL Power Integrations
Same model may have multiple batches, images only for reference.

TOP246R-TL

Part No TOP246R-TL
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description Extended Power, Design Flexible, EcoSmart, Integrated Off-line Switcher / IC OFFLINE SWIT UVLO HV D2PAK
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Reel - TR
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Frequency - Switching 66kHz to 132kHz
Power (Watts) 64W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-263-7C
Mounting Surface Mount
Win Source Part Number 122550-TOP246R-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TOP246R-TL CAD Model

Description

The Power Integrations 122550-TOP246R-TL is an isolated flyback topology integrated circuit that is widely used in high-power applications.

  • Power: 64W
  • Operating Temperature: -40°C to 150°C
  • Output Isolation: Yes
  • Internal Switch: Yes
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Frequency: 66kHz to 132kHz
  • Fault Protection: Current Limiting, Over-Temperature, and Over-Voltage
  • Frequency Control: Yes
  • Package: TO-263-7C
  • Popularity: High
  • Supply and Demand: Balanced
