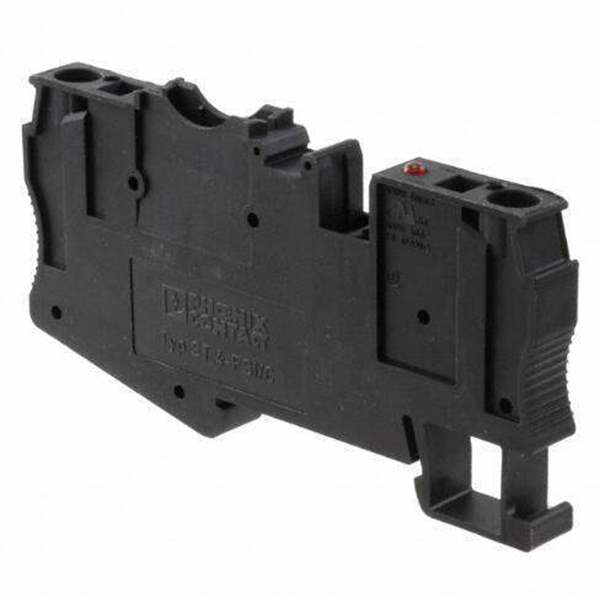

3036505 Phoenix Contact
Same model may have multiple batches, images only for reference.

3036505

Part No 3036505
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK DISCONN 10-28AWG
Datasheet
3036505 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Phoenix Contact
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Package Bulk
Product Status Active
Type Disconnect
Terminal - Width 8.2mm
Termination Style Push In, Spring
Current - IEC 30 A
Voltage - IEC 24V
Current - UL 30 A
Voltage - UL 300V
Win Source Part Number WS1207630-3036505
Ultra Librarian 3D Model Ultra Librarian 3036505 CAD Model

Description

Fuse terminal block with LED for mounting on NS 35, for miniature circuit breakers, terminal width: 8.2 mm, color: Black
