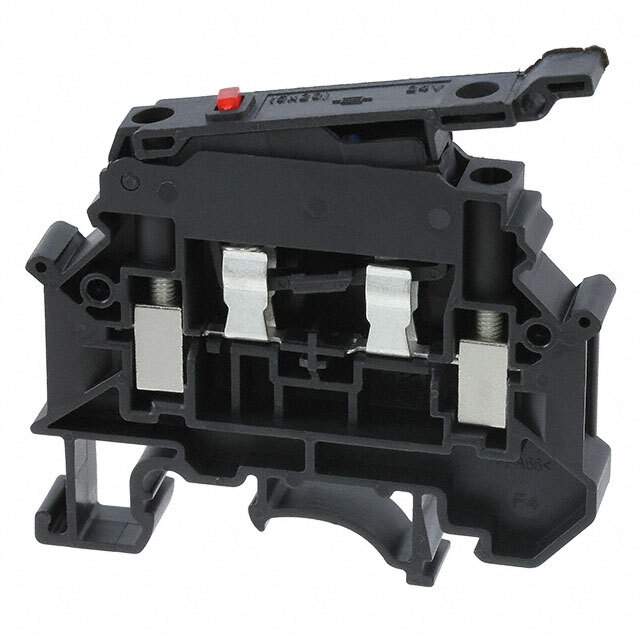

3000540 Real Image
Same model may have multiple batches, images only for reference.

3000540

Part No 3000540
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK DISCONN 12-24AWG / Terminal Block Connector 2 Position Disconnect Black 12-24 AWG
Datasheet
3000540 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Manufacturer Phoenix Contact
Packaging Bulk
Type Disconnect
Disconnect Type Fuse, Lever
Number of Positions 2
Number of Levels 1
Terminal - Width 8.2mm
Termination Style Screw
Current - IEC 6.3 A
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-24 AWG
Wire Gauge or Range - mm2 0.2-6mm²
Features LED
Color Black
Fuse Type 5mm x 20mm
Material - Insulation Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Stripping Length 8mm
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 3000540-ND,UK 5-HESILED 24 N,277-11089
Standard Package 50
Win Source Part Number 1332184-3000540
Ultra Librarian 3D Model Ultra Librarian 3000540 CAD Model

Description

The Phoenix Contact 1332184-3000540 is a disconnect type of terminal block.

  • Win Source Part Number: 1332184-3000540
  • Packaging: Bulk
  • Positions: 2
  • Level: 1
  • Termination Style: Screw
  • Current Rating (IEC): 6.3A
  • Voltage Rating (IEC): 500V
  • Wire Gauge Range: 12-24 AWG
  • Wire Gauge Range: 0.2-6mm²
  • Color: Black
  • LED Feature: Yes
  • Insulation Material: Polyamide (PA), nylon
  • Material Flammability Rating: UL94 V-0
  • Fuse Type: 5mm x 20mm
  • Standard Package: 50
  • ECCN: EAR99
  • RoHS Compliant: Yes
