Same model may have multiple batches, images only for reference.

1881406

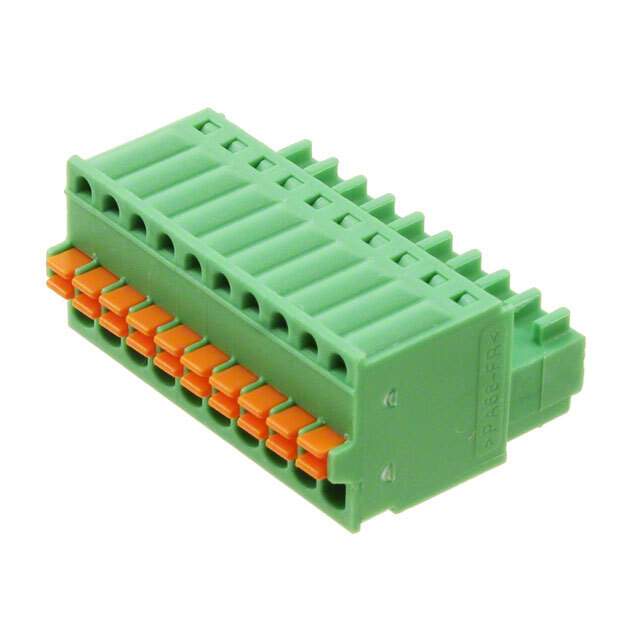

Name: 1881406
Brand: Phoenix Contact
SKU: 1332179
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1881406
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 10POS STR 2.5MM / 10 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	10
Positions Per Level	10
Number of Levels	1
Pitch	0.098" (2.50mm)
Plug Wire Entry	180°
Termination Style	Screwless - Leg Spring, Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	4A
Voltage - IEC	320 V
Current - UL	4 A
Voltage - UL	125 V
Wire Gauge or Range - AWG	20-28 AWG
Wire Gauge or Range - mm2	0.14-0.5mm²
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Wire Strip Length	8mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.463" (11.76mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	FK-MC 0.5/10-ST-2.5,FK-MC0.5/10-ST-2.5,277-1438
Standard Package	50
Win Source Part Number	1332179-1881406
Ultra Librarian 3D Model	Ultra Librarian 1881406 CAD Model

Description

The Phoenix Contact FK-MC 0.5/10-ST-2.5 is a plug with female sockets, designed for interconnects in terminal blocks.

Type: Plug with Female Sockets
Positions per Level: 10
Levels: 1
Pitch: 0.098 inches
Plug Wire Entry: 180 degrees
Termination Style: Screwless - Leg Spring, Push-In Spring
Current Rating (IEC): 4A
Current Rating (UL): 4A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 125V
Wire Gauge (AWG): 20-28
Wire Size (mm2): 0.14-0.5mm2
Contact Mating Finish: Tin
Housing Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Standard Package: 50
Mounting Style: Free Hanging (In-Line)
Insulation Height: 0.463 inches
Wire Strip Length: 8mm
Compliance: ROHS3 compliant
REACH: Unaffected
