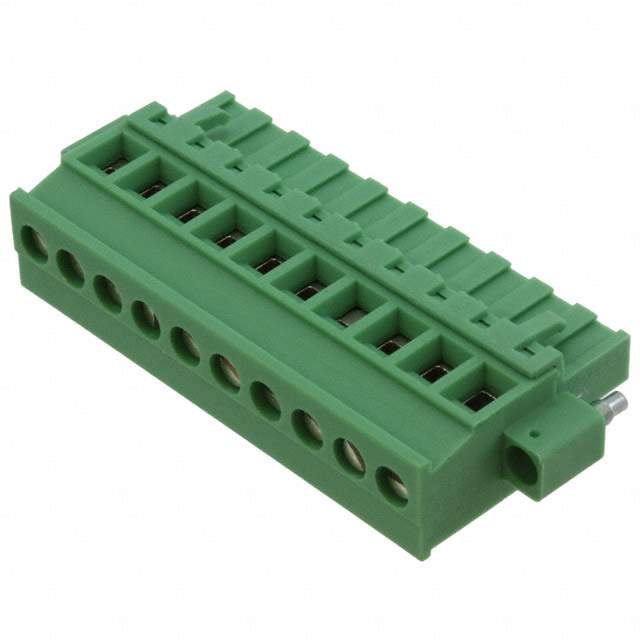

Same model may have multiple batches, images only for reference.

1835177

Name: 1835177
Brand: Phoenix Contact
SKU: 1332208
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1835177
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 10POS 5.08MM / 10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
Datasheet	1835177 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	10
Positions Per Level	10
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	90°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange, Retention Latches (Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	1.024" (26.01mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1835177-ND,MVSTBR 2,5/10-STF-5,08,277-6642,MVSTBR2,5/10-STF-5,08
Standard Package	50
Win Source Part Number	1332208-1835177
Ultra Librarian 3D Model	Ultra Librarian 1835177 CAD Model

Description

The Phoenix Contact terminal block headers, plugs, and sockets are a type of plug with female sockets that has ten positions per level and one level.

Positions per Level: Ten
Level: One
Pitch: 0.200 inches (5.08mm)
Wire Gauge Range: 12-30 AWG
Termination Style: Screw-rising cage clamp
Current Rating (IEC): 12A
Current Rating (UL): 15A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Housing Material: Polyamide (PA), nylon
Color: Green
Features: Retention latches and a mating flange on the wire side
Mounting: Free-hanging in-line
Insulation Height: 1.024 inches (26.01mm)
