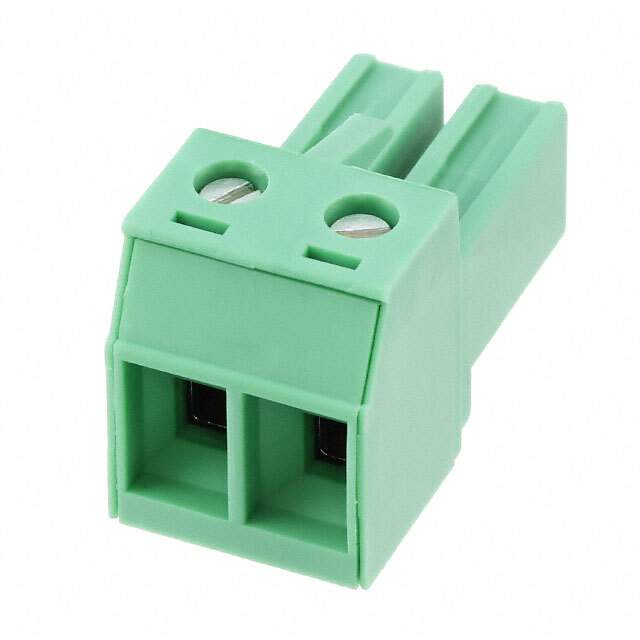

Same model may have multiple batches, images only for reference.

1804904

Name: 1804904
Brand: Phoenix Contact
SKU: 1332171
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1804904
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS STR 7.62MM / 2 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	20A
Voltage - IEC	1 kV
Current - UL	5 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	10-30 AWG
Wire Gauge or Range - mm2	0.2-4mm²
Color	Green
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.713" (18.10mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-5768,1804904-ND,1804904-NDR,PC4/2-ST-7,62
Standard Package	50
Win Source Part Number	1332171-1804904
Ultra Librarian 3D Model	Ultra Librarian 1804904 CAD Model

Description

The Phoenix Contact 1332171-1804904 is a 2-position female socket plug with retention latches and screw-rising cage clamp termination style.

Positions: 2
Type: Female Socket Plug
Features: Retention Latches
Termination Style: Screw-Rising Cage Clamp
Current-IEC: 20A
Voltage-IEC: 1 kV
Current-UL: 5A
Voltage-UL: 600V
Wire Gauge: 10-30 AWG
Wire Size: 0.2-4mm²
Housing Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
