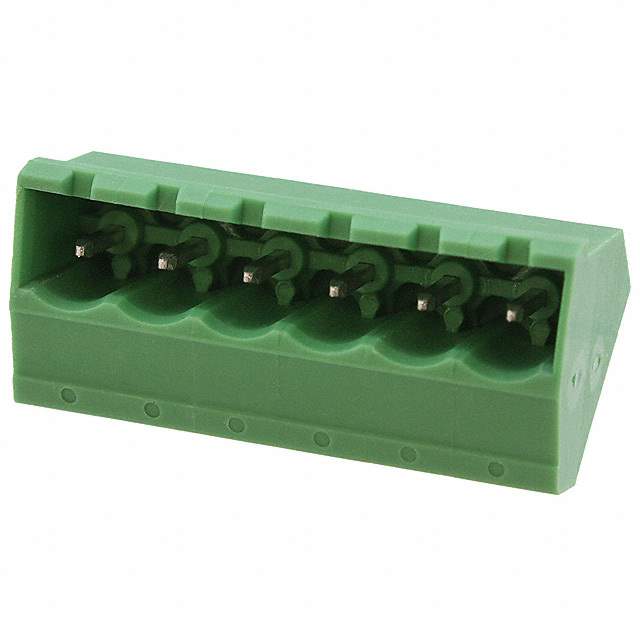

1767410 Real Image1 1767410 Real Image2
Same model may have multiple batches, images only for reference.
1767410 Real Image1 1767410 Real Image2
1767410 Real Image1 1767410 Real Image2
Same model may have multiple batches, images only for reference.

1767410

Part No 1767410
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 6POS 45DEG 5.08MM / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON SMSTBA
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 45°
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material -
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.583" (14.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 50 pcs
Win Source Part Number 1380569-1767410
Ultra Librarian 3D Model Ultra Librarian 1767410 CAD Model

Description

The Phoenix Contact Terminal Block is a high-quality connector that is designed for various applications. It is part of the COMBICON SMSTBA series, which is known for its reliability and durability.

  • Product Series: COMBICON SMSTBA
  • Type: Header with Male Pins, Shrouded (4 Side)
  • Positions per Level: 6
  • Mounting Type: Through-Hole
  • Pitch: 0.200" (5.08mm)
  • Termination: Solder
  • Current Rating (IEC): 12A
  • Voltage Rating (IEC): 630V
  • Material: Polyamide (PA) and Nylon
  • Package: Bulk
  • Standard Package: 50 pieces
