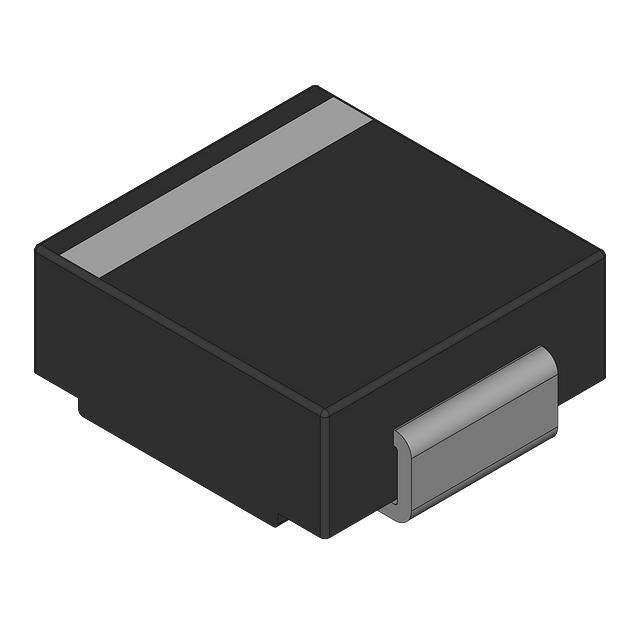

UF3M_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

UF3M_R1_00001

Part No UF3M_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SMC, ULTRA / Diode Standard 1000 V 3A Surface Mount SMC (DO-214AB)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 100 ns
Current - Reverse Leakage @ Vr 1 µA @ 1000 V
Capacitance @ Vr, F 63pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-UF3M_R1_00001DKR,3757-UF3M_R1_00001CT,3757-UF3M_R1_00001TR
Standard Package 800
Win Source Part Number 1171368-UF3M_R1_00001
Ultra Librarian 3D Model Ultra Librarian UF3M_R1_00001 CAD Model

Description

The Panjit International Inc. 1171368-UF3M_R1_00001 is a fast recovery diode that falls under the category of Discrete Semiconductor Products and is used in rectifiers.

  • Voltage: 1000 V
  • Average Rectified Current: 3A
  • Forward Voltage: 1.7 V @ 3 A
  • Reverse Recovery Time: 100 ns
  • Capacitance: 63pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Package: DO-214AB, SMC
  • Mounting: SMD (SMT)
  • Packaging: tape and reel
  • Standard Package: 800
