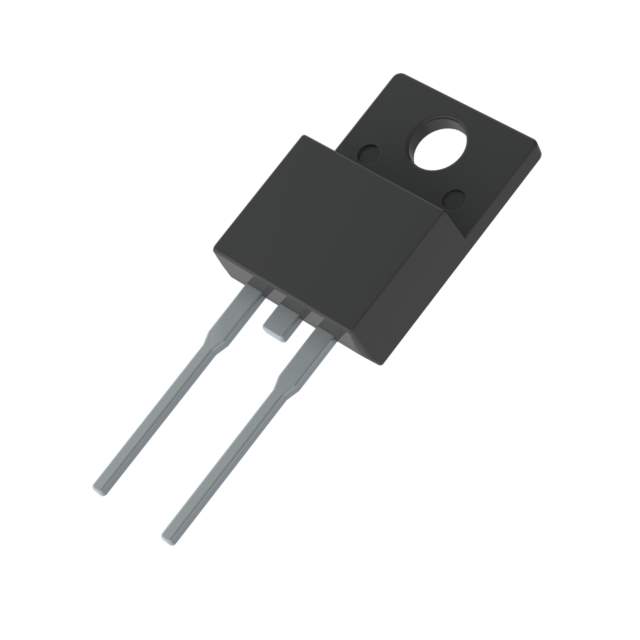

The SB1045F is a Schottky Barrier Rectifier manufactured by Panjit. It is designed for efficient rectification and fast switching, making it suitable for various power supply and conversion applications.

Applications:

• Switching Power Supplies (SMPS)
• DC-DC converters
• Freewheeling diodes
• Reverse polarity protection
• High-frequency rectification

Features:

• High surge current capability
• Low forward voltage drop
• Fast switching speed
• High reliability
• RoHS compliant

Benefits:

• Improved efficiency in power conversion
• Reduced power loss and heat generation
• Enhanced system reliability
• Suited for high frequency operation
• Environmentally friendly

Specifications:

The SB1045F features a maximum repetitive peak reverse voltage of 45V and a maximum average forward rectified current of 10A. It has a typical forward voltage of 0.55V at 5A. The surge overload current rating is 150A. The device comes in a TO-220AB package and is RoHS compliant, adhering to environmental standards. The operating junction temperature range is -55°C to +125°C. The low forward voltage drop minimizes power loss, while the fast switching speed enables efficient operation in high-frequency circuits. Its rugged design ensures reliable performance under high surge conditions.
