Same model may have multiple batches, images only for reference.

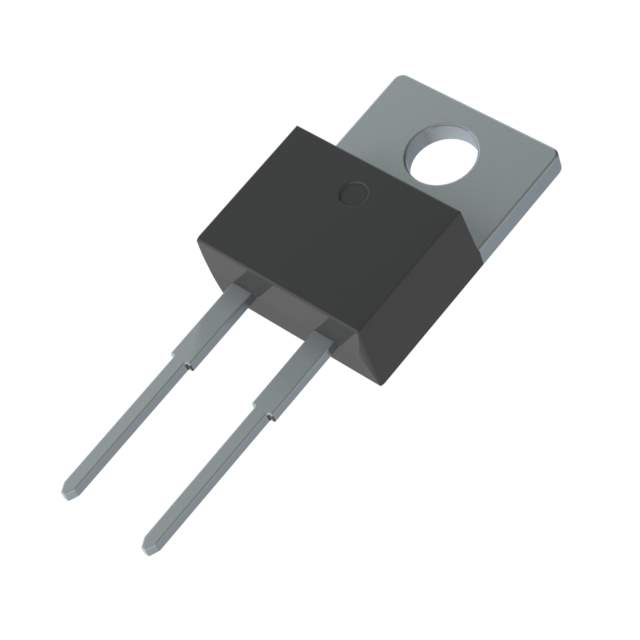

MBR1060_T0_00001 Real Image
Same model may have multiple batches, images only for reference.

MBR1060_T0_00001

Part No MBR1060_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description TO-220AC, SKY  /  Diode Schottky 60 V 10A Through Hole TO-220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 750 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 60 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -65°C ~ 175°C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR1060_T0_00001
Standard Package 50
Win Source Part Number 1010545-MBR1060_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR1060_T0_00001 CAD Model

Description

The Panjit 1010545-MBR1060_T0_00001 is a Schottky diode with a voltage rating of 60V and average rectified current of 10A. It has a forward voltage of 750mV @ 10A and a reverse leakage current of 50µA @ 60V.

  • Voltage Rating: 60V
  • Average Rectified Current: 10A
  • Forward Voltage: 750mV @ 10A
  • Reverse Leakage Current: 50µA @ 60V
  • Mounting Type: Through-Hole
  • Package/Case: TO-220-2
  • Standard Package: 50
  • Operating Temperature: -65°C to 175°C
  • RoHS Compliant: Yes
