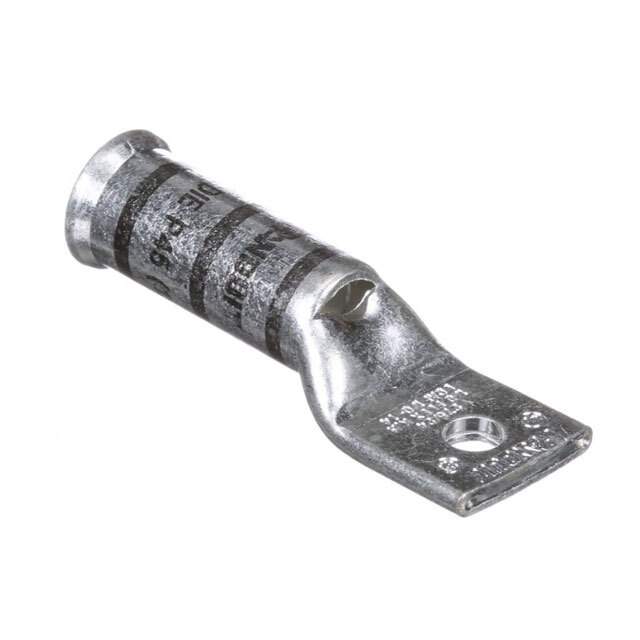

Same model may have multiple batches, images only for reference.

LCAF1/0-14-X

Get a Quote

Part No	LCAF1/0-14-X
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 1/0 AWG #1/4 / Terminal Connector Rectangular Rectangular Tongue 1/0 AWG 1/4 Stud
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	1/4 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.130" (3.30mm)
Length - Overall	2.460" (62.48mm)
Width - Outer Edges	0.850" (21.59mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	1/0 AWG
Insulation	Non-Insulated
Color	Black
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.450" (11.43mm)
Diameter - Barrel OD	0.670" (17.02mm)
Diameter - Ring ID	0.270" (6.86mm)
Base Product Number	LCAF
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	298-14675,07498355758,LCAF1/0-14-X-ND
Standard Package	1
Win Source Part Number	1043999-LCAF1/0-14-X
Ultra Librarian 3D Model	Ultra Librarian LCAF1/0-14-X CAD Model

Alternative Products

Description

The Panduit Corp LCAF1/0-14-X is a rectangular tongue terminal with a crimp, barrel termination and an electro-tin contact finish.

Termination: Crimp, Barrel
Contact Finish: Electro-Tin
Wire Gauge: 1/0 AWG
Stud/Tab Size: 1/4 stud
Barrel ID: 0.450 inches
Barrel OD: 0.670 inches
Insulation: Non-Insulated
Overall Length: 2.460 inches
Series: Pan-Lug
Color: Black
Stud Hole: Single
Tab Thickness: 0.130 inches
Mounting: Free Hanging (In-Line)
ECCN: EAR99
