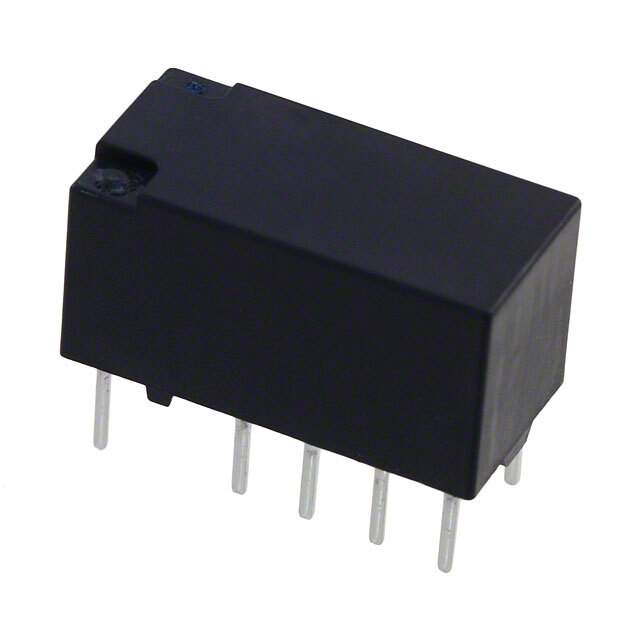

Same model may have multiple batches, images only for reference.

TX2-L2-12V

Name: TX2-L2-12V
Brand: Panasonic
SKU: 383894
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TX2-L2-12V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM DPDT 2A 12V
Datasheet	TX2-L2-12V Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tube/Rail
Status	Active
Relay Type	Telecom
Coil Type	Latching, Dual Coil
Coil Current	16.7mA
Coil Voltage	12VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2A
Switching Voltage	220VDC - Max
Turn On Voltage (Max)	9 VDC
Operate Time	4ms
Release Time	4ms
Features	Sealed - Fully
Mounting	Through Hole
Termination Style	PC Pin
Coil Power	200 mW
Coil Resistance	720 Ohms
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	383894-TX2-L2-12V
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TX2-L2-12V CAD Model

Alternative Products

Description

The Panasonic Electric Works TX2-L2-12V is a DPDT (2 Form C) telecom relay that is fully sealed, making it suitable for use in harsh environments. It features a through-hole mounting style and a coil voltage of 12VDC.

Contact Form: DPDT (2 Form C)
Sealed: Fully sealed
Mounting Style: Through-Hole
Coil Voltage: 12VDC
Coil Resistance: 720 Ohms
Coil Current: 16.7mA
Contact Rating: 2A
Switching Voltage: 220VDC
Operate Time: 4ms
Release Time: 4ms
Popularity: High
