Same model may have multiple batches, images only for reference.

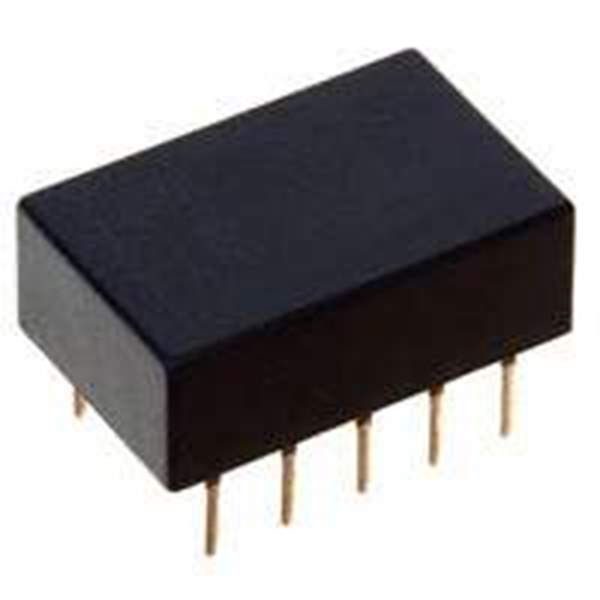

TQ4-L2-12V Real Image
Same model may have multiple batches, images only for reference.

TQ4-L2-12V

Part No TQ4-L2-12V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM 4PDT 1A 12V
Datasheet
TQ4-L2-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type Telecom
Coil Type Latching, Dual Coil
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 9 VDC
Operate Time 3ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 380387-TQ4-L2-12V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian TQ4-L2-12V CAD Model

Description

The Panasonic Electric Works TQ4-L2-12V is a 4PDT (4 Form C) latching, dual coil telecom relay with a coil voltage of 12VDC and a contact rating of 1A.

  • Coil Voltage: 12VDC
  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 110VDC max
  • Operating Temperature Range: -40°C to 70°C
  • Coil Resistance: 360 Ohms
  • Operate Time: 3ms
  • Release Time: 3ms
  • Turn On Voltage (max): 9VDC
