Same model may have multiple batches, images only for reference.

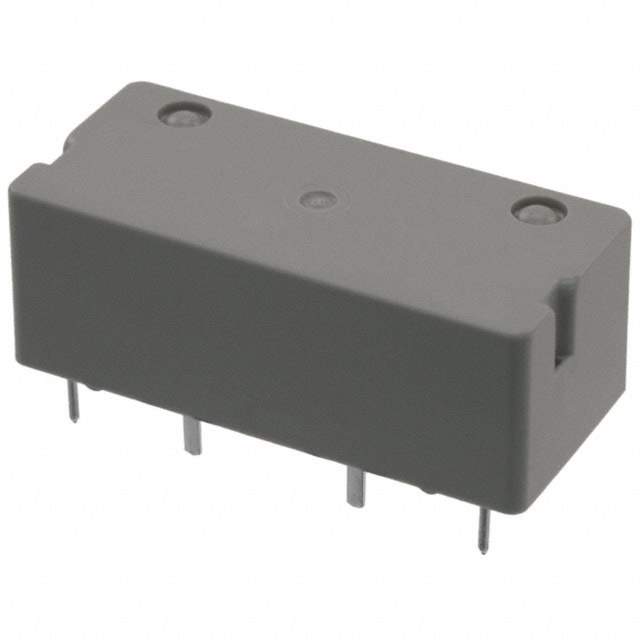

ST2-L2-DC48V-F Real Image
Same model may have multiple batches, images only for reference.

ST2-L2-DC48V-F

Part No ST2-L2-DC48V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description 1a1b/2a 8A polarized power relays | RELAY GEN PURPOSE DPST 8A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 48VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Coil Current 4.7mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 38.4 VDC
Operate Time 10ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 9 kOhms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1260241-ST2-L2-DC48V-F
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ST2-L2-DC48V-F CAD Model

Description

The ST2-L2-DC48V-F is a DPST-NO (2 Form A) type relay manufactured by Panasonic Electric Works.

  • Relay Type: latching, dual coil
  • Coil Voltage: 48VDC
  • Contact Rating (current): 8A
  • Switching Voltage: 380VAC, 250VDC - Max
  • Product State: fully sealed
  • Temperature Range: -40°C ~ 60°C
