Same model may have multiple batches, images only for reference.

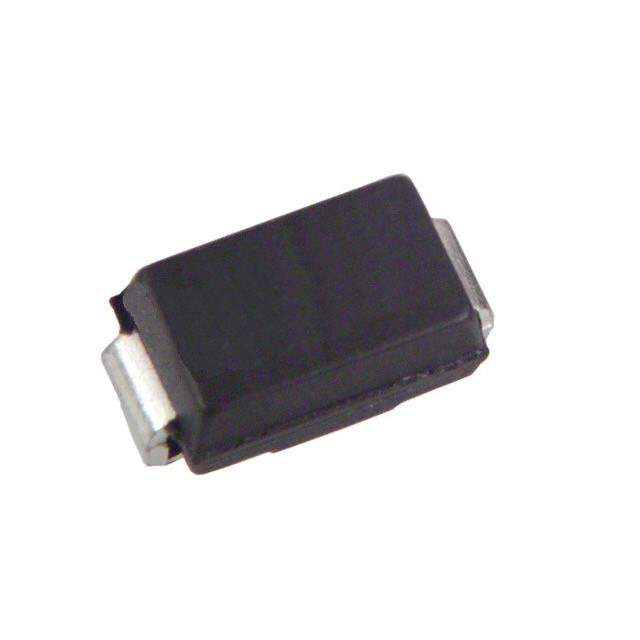

MA735-(TX) Real Image
Same model may have multiple batches, images only for reference.

MA735-(TX)

Part No MA735-(TX)
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A NMINIP2
Datasheet
MA735-(TX) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 1mA @ 30V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package NMiniP2-J1
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 207240-MA735-(TX)
Ultra Librarian 3D Model Ultra Librarian MA735-(TX) CAD Model

Description

The MA735-(TX) is an obsolete (EOL) electronic component manufactured by Panasonic Electronic Components.

  • Type: Schottky Diode
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Operating Temperature Range: -40°C to 125°C
  • Forward Voltage (Vf) (Max) @ If: 500mV @ 1A
