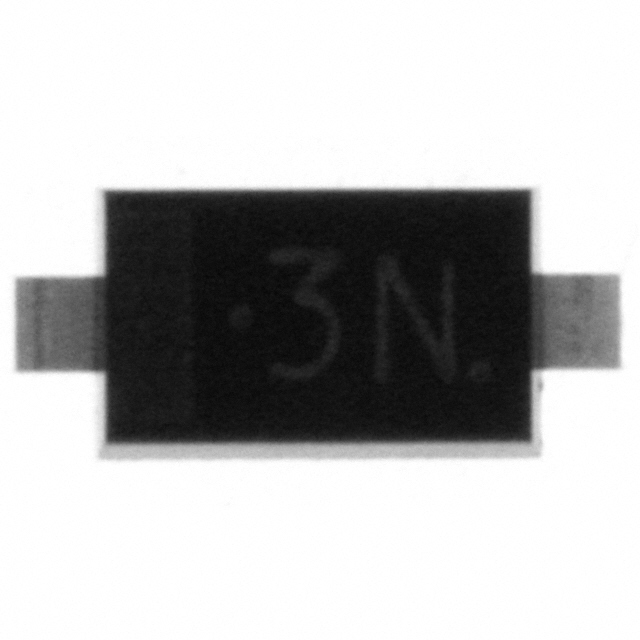

MA22D3900L Panasonic
Same model may have multiple batches, images only for reference.

MA22D3900L

Part No MA22D3900L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1.57A MINI2
Datasheet
MA22D3900L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1.57A
Voltage - Forward (Vf) (Max) @ If 570mV @ 1.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 100μA @ 40V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 096357-MA22D3900L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MA22D3900L CAD Model

Description

The Panasonic Electronic Components MA22D3900L is a Schottky diode with a voltage rating of 40V and a current rating of 1.57A. It has a fast recovery speed of 200mA (Io) and a reverse leakage current of 100μA at 40V. Operating at a maximum junction temperature of 150°C, it has a capacitance of 50pF at 10V, 1MHz. The Mini2-F1 case/package makes it easy to mount on a printed circuit board. This diode belongs to the Discrete Semiconductor Products category and is obsolete (EOL).
