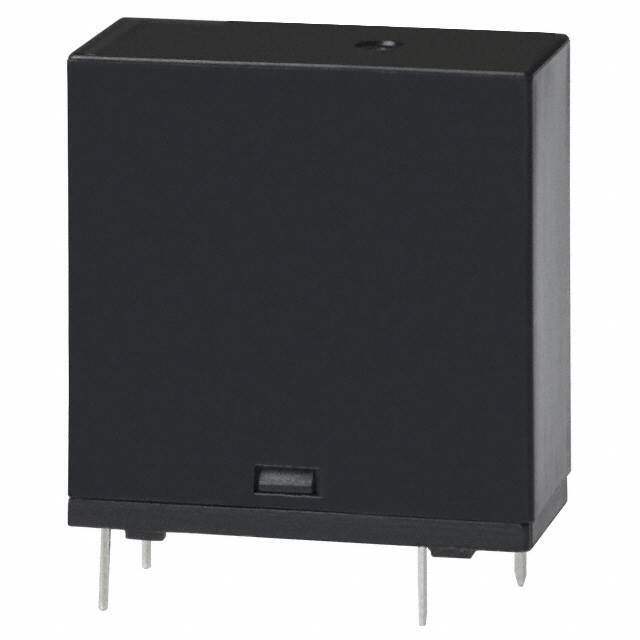

LKP1AF-5V Real Image
Same model may have multiple batches, images only for reference.

LKP1AF-5V

Part No LKP1AF-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 106.4mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 47 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 070984-LKP1AF-5V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LKP1AF-5V CAD Model

Description

The Panasonic Electric Works 070984-LKP1AF-5V is a general-purpose relay that has a coil voltage of 5VDC and a coil resistance of 47 Ohms.

  • Coil Voltage: 5VDC
  • Coil Resistance: 47 Ohms
  • Contact Rating: 10A
  • Switching Voltage: 277VAC and 30VDC
  • Sealed: flux protection
  • Contact Form: SPST-NO (1 Form A)
  • Mounting: through a hole
  • Supply and Demand Status: limited
