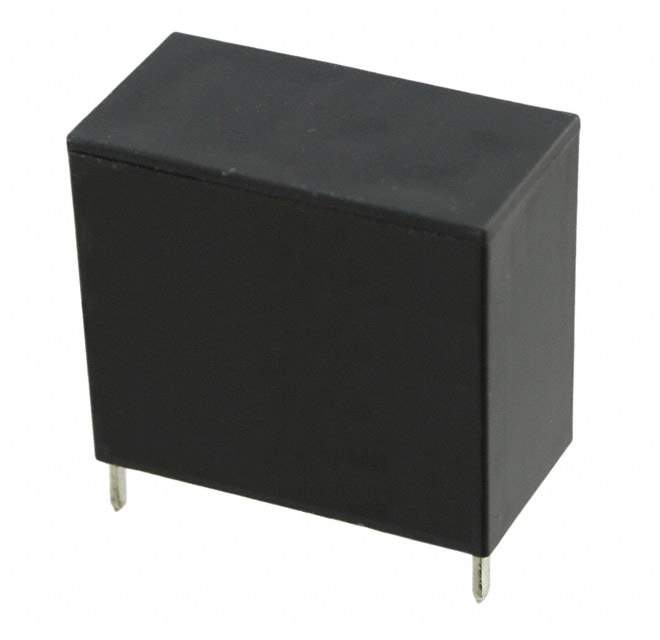

JM1AN-P-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

JM1AN-P-DC24V-F

Part No JM1AN-P-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Ideal for compressor and motor control Inrush 80A, 1a 20A power relay | RELAY GEN PURPOSE SPST 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20A
Switching Voltage 250VAC - Max
Coil Current 37.5mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 640 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 724186-JM1AN-P-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JM1AN-P-DC24V-F CAD Model

Description

The Panasonic Electric Works relay has a contact rating of 20A.

  • Contact Rating: 20A
  • Package: Bulk
  • Termination Style: PC Pin
  • Mounting: Through-hole
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 640 Ohms
  • Coil Current: 37.5mA
  • Operate Time: 20ms
  • Relay Type: General Purpose
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Switching Voltage: 250VAC (Max)
  • Release Time: 10ms
  • Seal Rating: -
  • Operating Temperature: -40°C ~ 60°C
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (Unlimited)
  • Coil Insulation: -
  • Must Operate Voltage: 16.8 VDC
  • Must Release Voltage: 2.4 VDC
