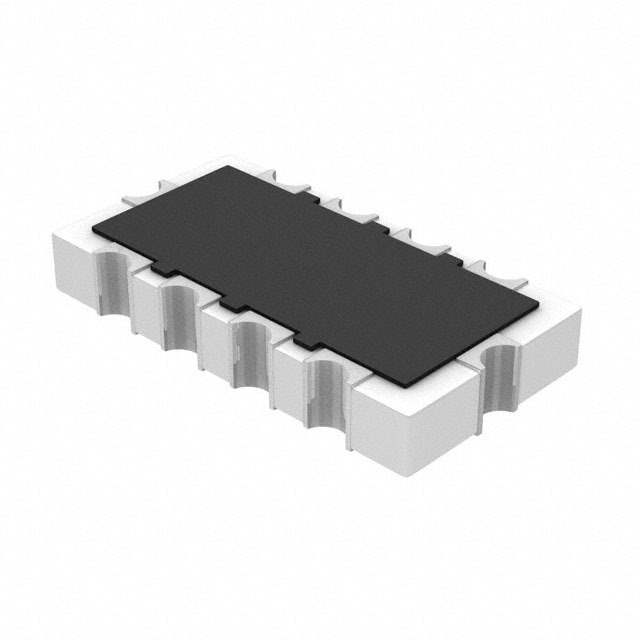

EZA-ST63AAAJ Real Image
Same model may have multiple batches, images only for reference.

EZA-ST63AAAJ

Part No EZA-ST63AAAJ
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 1 KOHM/100PF SMD
Datasheet
EZA-ST63AAAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 4th
Technology RC (Pi)
Number of Channels 4
Resistance - Channel (Ohms) 1k
Values R = 1 kOhms, C = 100pF
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.157" L x 0.083" W (4.00mm x 2.10mm)
Height 0.033" (0.85mm)
Win Source Part Number 096998-EZA-ST63AAAJ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EZA-ST63AAAJ CAD Model

Description

EZA-ST63AAAJ - Advanced Electronic Solution

The EZA-ST63AAAJ is a next-generation electronic component, offering superior performance for complex electronic systems. It provides enhanced functionality and flexibility for modern engineering challenges.

  • Applications:
    • Telecommunication systems
    • Smart home devices
    • Automotive technologies
  • Features and Benefits:
    • High precision and accuracy for critical applications
    • Enhanced connectivity options for seamless integration
    • Energy-efficient operation reduces overall power usage
  • Additional Details:

    This component is engineered to support advanced processing capabilities, contributing to faster computational tasks and improved data handling efficiency. It is also designed to minimize electromagnetic interference, delivering better signal integrity.
