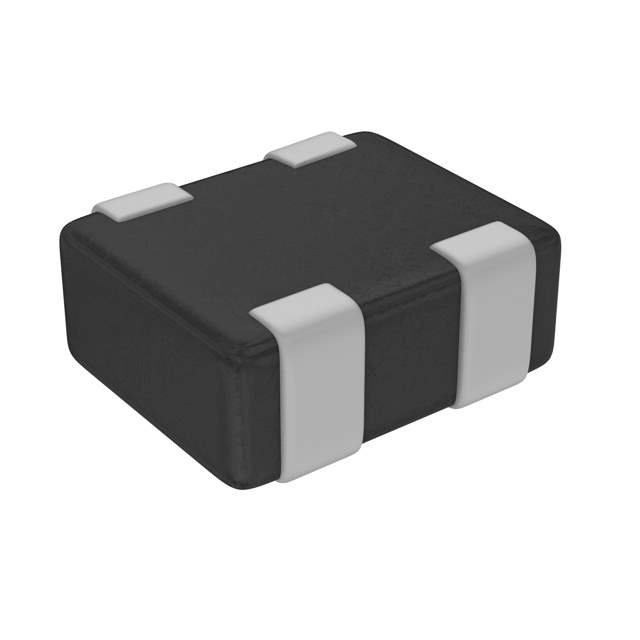

EXC-24CB221U Real Image
Same model may have multiple batches, images only for reference.

EXC-24CB221U

Part No EXC-24CB221U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 100MA 2LN 220 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 220 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 700 mOhm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0504 (1210 Metric), 4 Lead
Win Source Part Number 096190-EXC-24CB221U
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian EXC-24CB221U CAD Model

Description

Applications and Projects

  • Automotive electronics
  • Industrial control systems
  • Telecommunication devices

Features and Benefits

  • Robust design ensures stability in high-vibration environments
  • Wide operating temperature range for versatile applications
  • Low impedance contributes to improved system performance

Additional Details

The EXC-24CB221U is specially engineered for environments that demand durability and consistent output, making it ideal for automotive and heavy-duty industrial applications.
