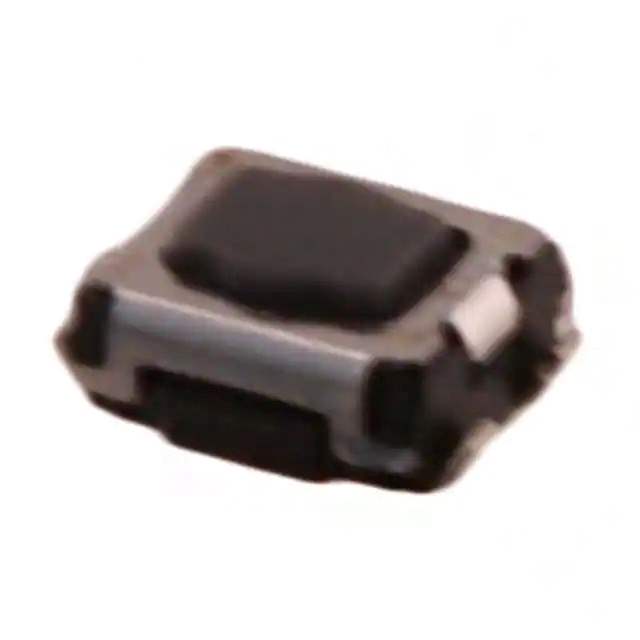

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAA
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.70mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.50mm x 2.90mm
Illumination Non-Illuminated
Operating Force 500gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AA
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918759-EVP-AA802Q
Ultra Librarian 3D Model Ultra Librarian EVP-AA802Q CAD Model

Description

The EVP-AA802Q is a tactile switch from Panasonic's EVPAA series.

  • Termination Style: J lead
  • Actuator: Rectangular Button
  • Circuit Configuration: SPST-NO (Single Pole Single Throw, Normally Open)
  • Switch Function: Off-Momentary
  • Actuator Travel: 0.15mm
  • Operating Force: 500gf
  • Mounting: Surface Mountable
  • Package: Tape & Reel
  • Mechanical Life: 100,000 cycles
  • Product Status: Active
  • Standard Package: 5,000 pcs
