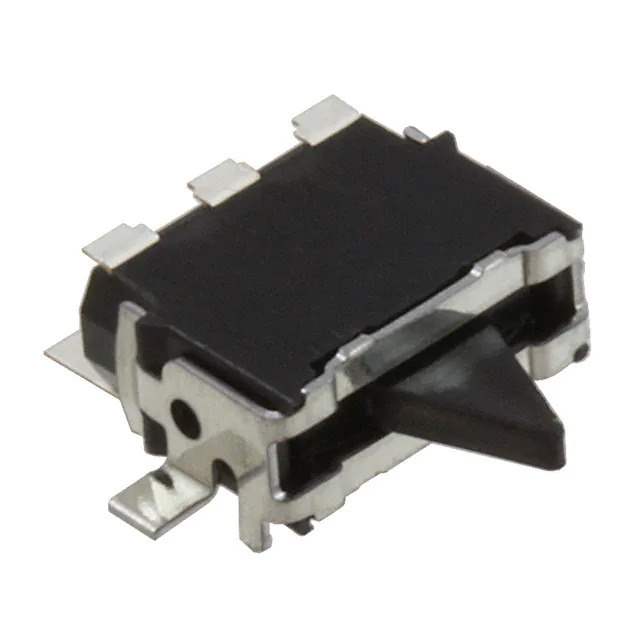

ESE-24MH6T

Part No ESE-24MH6T
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPDT 10MA 5V / Switch SPDT Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Panasonic
Series ESE24
Package Tape & Reel
Product Status Active
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 35gf
Operating Position 0.132" (3.35mm)
Temperature Range - Operating -10°C ~ 70°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-24
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 871223-ESE-24MH6T
Ultra Librarian 3D Model Ultra Librarian ESE-24MH6T CAD Model

Description

The ESE24 series is a surface mount, right angle limit switch from Panasonic.

  • Series: ESE24
  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Circuit Configuration: SPDT
  • Switch Function: Mom-Off-Mom
  • Actuator Type: Angled Toggle
  • Operating Force: 35gf
  • Voltage Rating: 5V DC
  • Electrical Life: 50,000 cycles
  • Operating Temperature Range: -10°C to 70°C
  • Packaging: Tape and Reel
  • Package Quantity: 1,000 pcs
  • Product Status: Active
