Same model may have multiple batches, images only for reference.

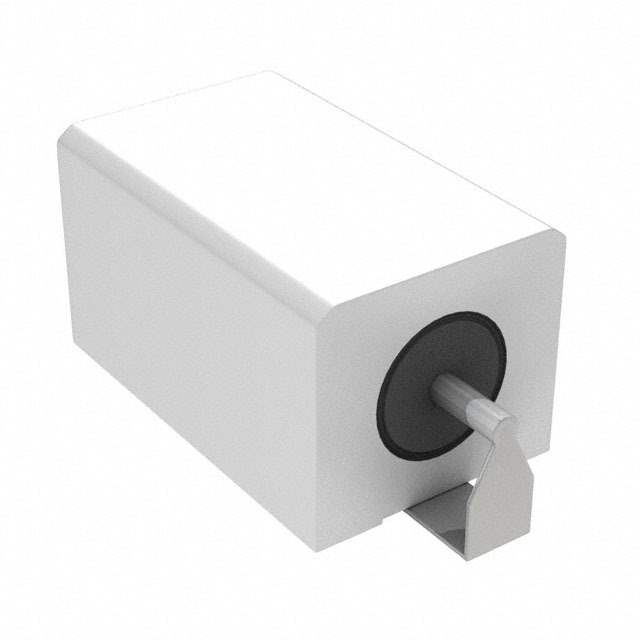

ERX-1HJ2R7H Real Image
Same model may have multiple batches, images only for reference.

ERX-1HJ2R7H

Part No ERX-1HJ2R7H
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.7 OHM 5% 1W J BEND
Datasheet
ERX-1HJ2R7H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Resistance (Ohms) 2.7
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Flame Proof, Safety
Temperature Coefficient ±350ppm/°C
Temperature Range - Operating -55°C to 180°C
Case / Package SMD
Height - Seated (Max) 0.205" (5.20mm)
Number of Terminations 2
Win Source Part Number 118151-ERX-1HJ2R7H
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ERX-1HJ2R7H CAD Model

Description

The ERX-1HJ2R7H is a robust fixed resistor renowned for its high precision and reliability. It is intended for use in a wide range of electronic applications where consistent resistance is a necessity.

Features and Benefits

  • Precision Resistance: Offers tight tolerance levels for accuracy in circuitry.
  • High Power Rating: Capable of handling significant power loads without performance loss.
  • Thermal Stability: Maintains resistance levels despite temperature changes.

Applications

  • Power supplies
  • Electronic testing and diagnostics
  • Instrumentation
  • Control systems in automation
