Products specifications

Manufacturer Panasonic
Win Source Part Number 1172391-ERJ3GEYJ152V
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ERJ3GEYJ152V CAD Model

Description

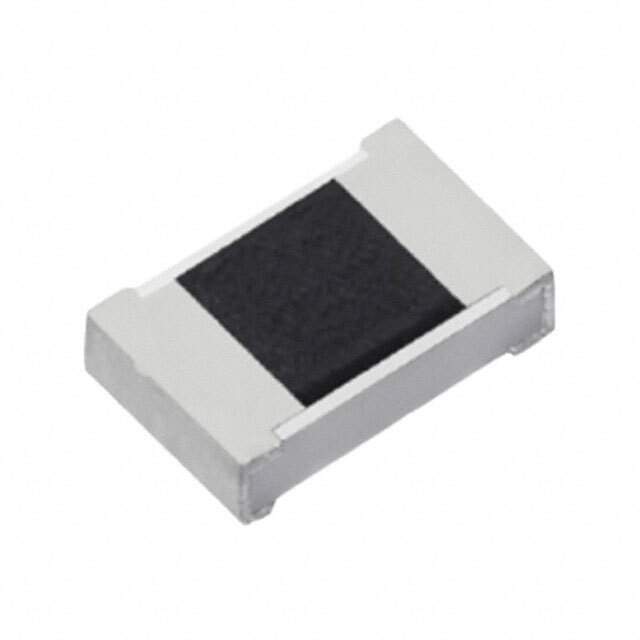

The ERJ3GEYJ152V is a chip resistor produced by Panasonic. It is designed for surface mount technology (SMT) and belongs to the ERJ series, which is well-regarded for its high reliability and stability in various electronic applications. This particular resistor has a resistance value of 1.5 kOhms.

Applications

  • Consumer Electronics: Frequently used in products such as televisions, digital cameras, and portable audio players for current limiting and voltage division.
  • Automotive Electronics: Incorporated into automotive control systems and sensor circuits for precise signal conditioning and circuit protection.
  • Industrial Equipment: Utilized in industrial control systems, power supplies, and instrumentation devices for stable current sensing and voltage regulation.
  • Medical Devices: Implemented in medical monitoring equipment and diagnostic instruments for accurate resistance measurement and control.
  • Telecommunications Equipment: Applied in telecommunication devices for impedance matching, signal termination, and circuit stabilization.

Features

  • Surface Mount Technology (SMT): Enables efficient automated assembly, reducing manufacturing time and costs.
  • High Reliability: Provides consistent and stable resistance values under a wide range of operating conditions.
  • Compact Size: Facilitates the design of high-density circuits, optimizing the use of board space.
  • Lead-Free Construction: Complies with RoHS (Restriction of Hazardous Substances) standards, ensuring environmental safety.
  • Protective Coating: Offers robust protection against moisture, abrasion, and other environmental factors.
  • Precise Resistance Value: Delivers accurate resistance values, contributing to reliable and predictable circuit behavior.

Benefits

  • Improved Circuit Performance: Enhances the accuracy and reliability of circuit operation.
  • Reduced Manufacturing Costs: Streamlines the assembly process, lowering production expenses.
  • Enhanced Product Reliability: Minimizes potential failures, extending the overall lifespan of the end product.
  • Compliance with Environmental Standards: Aligns with environmental regulations, promoting sustainable practices.
  • Space-Saving Design: Allows for more compact and efficient circuit layouts.
  • Consistent Performance: Maintains stable resistance values even with variations in temperature and operating conditions.

Additional Details

The ERJ3GEYJ152V resistor typically has a tolerance of ±5%, representing the acceptable range of variation from its nominal resistance. It is typically rated for 0.1W power dissipation. It is often available in an 0603 package size. It is crucial to apply proper soldering techniques for reliable mounting and electrical connection. More detailed specifications and application notes are available in the manufacturer's datasheet provided by Panasonic.
