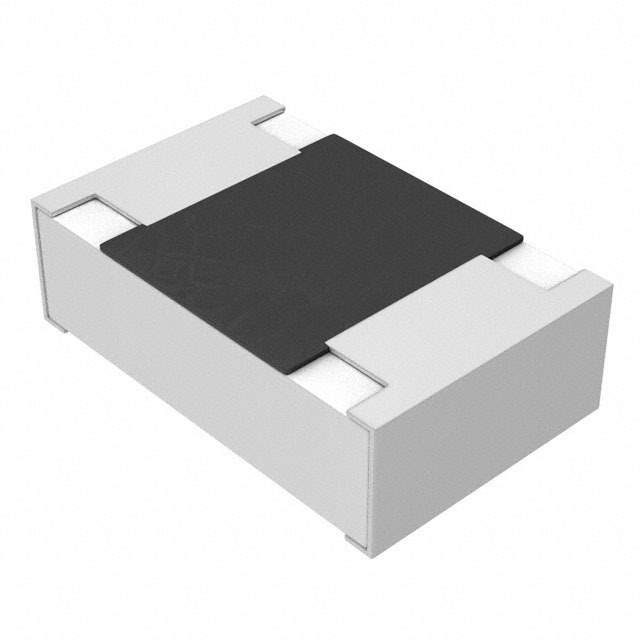

The ERJ-6GEYJ823V is a thick film chip resistor manufactured by Panasonic, designed for surface mount technology (SMT) applications. This resistor is known for its reliability, stability, and precision in various electronic circuits.

Applications

• Consumer Electronics: Used in devices like smartphones, tablets, and audio equipment for current limiting, voltage division, and pull-up/pull-down resistor applications.
• Industrial Equipment: Employed in industrial control systems, power supplies, and measuring instruments where accurate and stable resistance is required.
• Automotive Electronics: Used in electronic control units (ECUs), sensors, and automotive lighting systems for dependable performance.
• Medical Devices: Found in medical monitoring equipment, diagnostic tools, and therapeutic devices for precision electronic control.
• Communication Equipment: Integrated into network devices, telecommunications infrastructure, and wireless communication systems for signal conditioning and impedance matching.

Features

• High Reliability: Constructed with high-quality materials and manufacturing processes to ensure long-term stability.
• Compact Size: 0805 package (2.0mm x 1.25mm) for space-saving designs.
• Excellent Temperature Stability: Low temperature coefficient of resistance (TCR) for stable performance over a wide temperature range.
• RoHS Compliant: Environmentally friendly and compliant with RoHS standards.
• High Pulse Withstanding Performance: Capable of withstanding surge events.

Benefits

• Precise Resistance Value: Provides accurate and stable resistance, ensuring proper circuit functionality.
• Space Efficiency: Small package size allows for dense circuit designs.
• Long-Term Stability: Maintains resistance value over time, reducing the need for frequent recalibration or replacement.
• Wide Operating Temperature Range: Operates reliably in various environmental conditions.
• Easy to Solder: Designed for easy and reliable surface mount soldering.

Additional Details

The ERJ-6GEYJ823V has a resistance value of 82 kΩ with a tolerance of ±5%. The rated power dissipation is 0.125W (1/8W). The operating temperature range is typically -55°C to +155°C. The resistor is manufactured using a thick film resistive element on an alumina substrate, with a protective overcoat. The terminations are solder-plated, providing excellent solderability. This resistor is ideal for general-purpose applications where stability, reliability and compact size are important factors.
