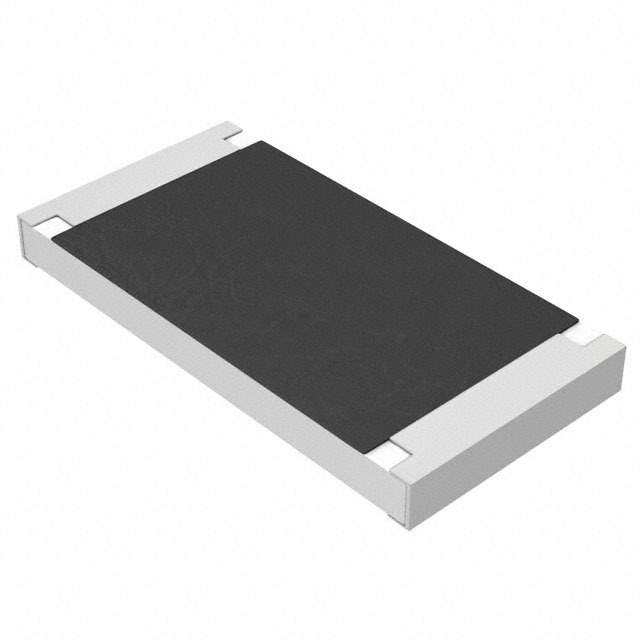

ERJ-1TYJ560U Real Image
Same model may have multiple batches, images only for reference.

ERJ-1TYJ560U

Part No ERJ-1TYJ560U
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES SMD 56 OHM 5% 1W 2512 / 56 Ohms ±5% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERJ-1T
Package Tape & Reel
Product Status Not For New Designs
Resistance 56 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERJ-1TYJ5
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339147-ERJ-1TYJ560U
Ultra Librarian 3D Model Ultra Librarian ERJ-1TYJ560U CAD Model

Description

The Panasonic Electronic Components ERJ-1TYJ560U is a chip resistor designed for surface mount applications.

  • Series: ERJ-1T
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Height: 0.028" (0.70mm)
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • AEC-Q200: Yes
  • Power (Watts): 1W
  • Resistance: 56 Ohms
  • Number of Terminations: 2
  • Package / Case: 2512 (6432 Metric)
  • Operating Temperature: -55°C ~ 155°C
  • ECCN: EAR99
  • Status: Not For New Designs
