Same model may have multiple batches, images only for reference.

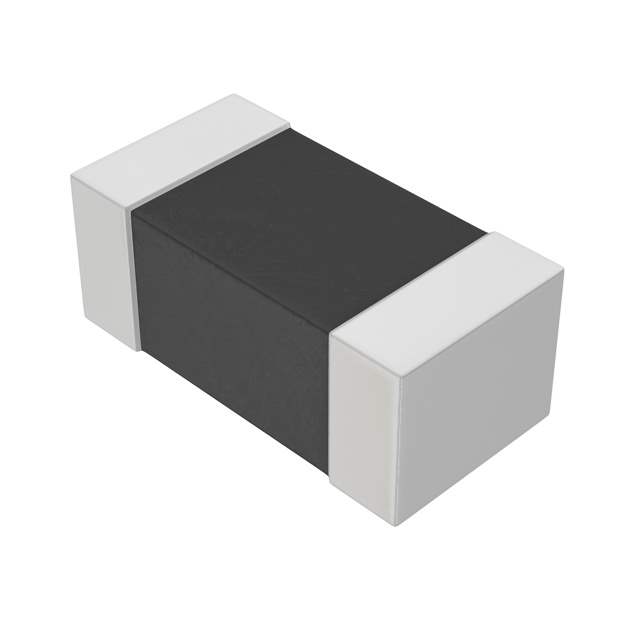

ELW-CF800F01 Real Image
Same model may have multiple batches, images only for reference.

ELW-CF800F01

Part No ELW-CF800F01
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 800MHZ ESD SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 1
Center / Cutoff Frequency 800MHz (Cutoff)
Attenuation Value 30dB @ 750MHz to 850MHz
Resistance - Channel (Ohms) 10
Current 90mA
ESD Protection Yes
Temperature Range - Operating -20°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height 0.022" (0.55mm)
Win Source Part Number 099408-ELW-CF800F01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ELW-CF800F01 CAD Model

Description

ELW-CF800F01 Electronic Component

Designed with precision, the ELW-CF800F01 serves as a reliable component for various electronic applications. Its high-performance attributes ensure that you can rely on it in diverse scenarios.

  • Applications:
  • High-frequency communication systems
  • Instrumentation and control
  • Mobile devices
  • Aerospace systems
  • Features and Benefits:
  • Superior signal integrity
  • Robust construction for extended lifespan
  • High-frequency operational capability
  • Versatile application potential

With the ELW-CF800F01, you can achieve exceptional performance, making it a crucial part of your electronic projects.
