Same model may have multiple batches, images only for reference.

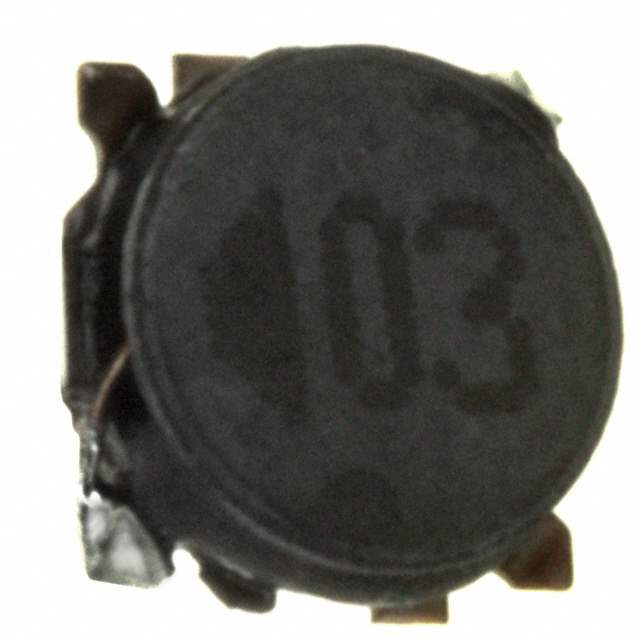

ELL-4GG100M Real Image
Same model may have multiple batches, images only for reference.

ELL-4GG100M

Part No ELL-4GG100M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 10UH 770MA 250 MOHM
Datasheet
ELL-4GG100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 10μH
Tolerance ±20%
Current Rating 770mA
Current - Saturation 900mA
DC Resistance (DCR) 250 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 121582-ELL-4GG100M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-4GG100M CAD Model

Description

ELL-4GG100M Inductor

The ELL-4GG100M is an advanced inductor designed to meet the demands of modern electronic systems. Its characteristic low-profile structure makes it perfect for minimizing interference and maintaining signal integrity.

  • Applications:
    • Switching regulators
    • DC-DC converters
    • Telecommunication devices
  • Features and Benefits:
    • Excellent electromagnetic compatibility: Reduces electromagnetic interference (EMI).
    • High-quality core material: Enhances performance and longevity.
    • Wide operating temperature range: Suitable for diverse environments.
  • Additional Details: The ELL-4GG100M is crafted to withstand rigorous conditions, making it a reliable choice for both commercial and industrial projects.
