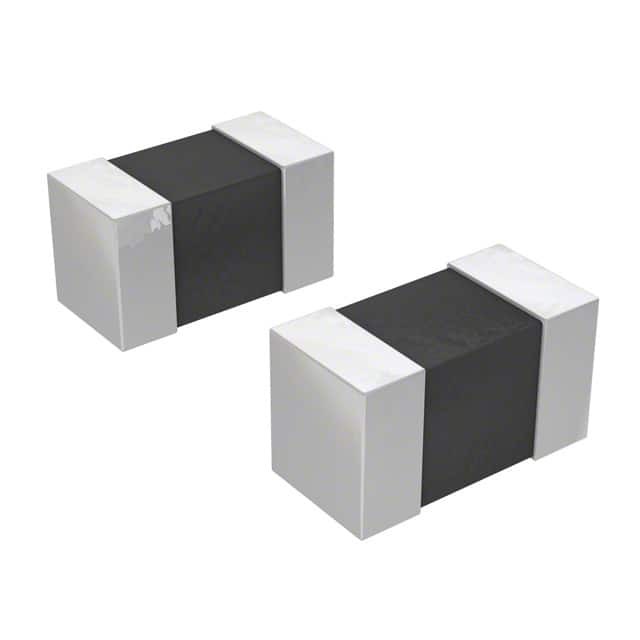

Same model may have multiple batches, images only for reference.
ELJ-QF3N9ZF
Same model may have multiple batches, images only for reference.

ELJ-QF3N9ZF

Part No ELJ-QF3N9ZF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 3.9NH 360MA 150MOHM SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic
Series QF
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Ceramic
Inductance 3.9 nH
Tolerance ±0.2nH
Current Rating (Amps) 360 mA
Shielding Unshielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 10 @ 100MHz
Frequency - Self Resonant 5.2GHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.022" (0.55mm)
Base Product Number ELJ-QF
Standard Package 10,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 850375-ELJ-QF3N9ZF
Ultra Librarian 3D Model Ultra Librarian ELJ-QF3N9ZF CAD Model

Description

The ELJ-QF3N9ZF is a fixed inductor from Panasonic's QF series.

  • Series: QF
  • Type: Multilayer
  • Inductance: 3.9nH
  • Tolerance: ±0.2nH
  • Size / Dimension: 0402 (1005 Metric)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • DC Resistance (DCR): 150mOhm Max
  • Shielding: Unshielded
  • Packaging: 10,000 pcs
  • Frequency - Self Resonant: 5.2GHz
  • Q @ Freq: 10 @ 100MHz
  • Product Status: Obsolete
  • Manufacturer: Panasonic
