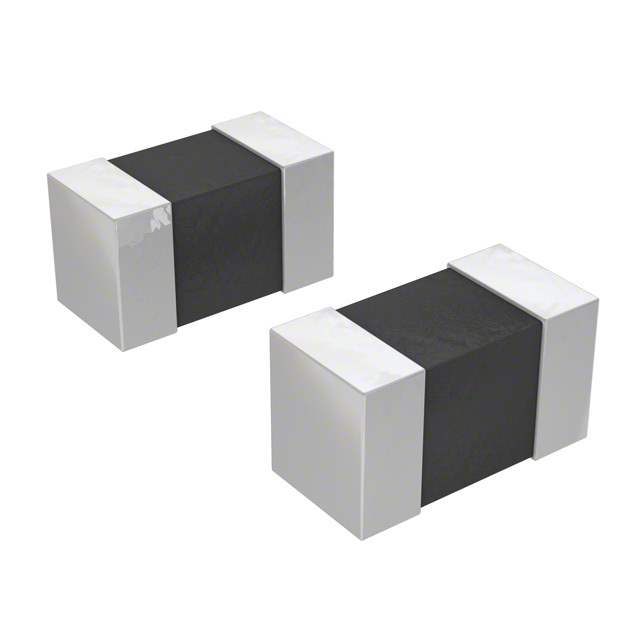

ELJ-QF3N9DF Real Image
Same model may have multiple batches, images only for reference.

ELJ-QF3N9DF

Part No ELJ-QF3N9DF
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 3.9NH 360MA 150 MOHM
Datasheet
ELJ-QF3N9DF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ceramic
Inductance 3.9nH
Tolerance ±0.3nH
Current Rating 360mA
DC Resistance (DCR) 150 mOhm Max
Q @ Freq 10 @ 100MHz
Frequency - Self Resonant 5.2GHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 102374-ELJ-QF3N9DF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELJ-QF3N9DF CAD Model

Description

ELJ-QF3N9DF Ceramic Inductor

The ELJ-QF3N9DF is an efficient and compact inductor, ideal for applications requiring high precision in signal processing and power regulation in dense electronic configurations.

  • Applications/Projects:
    • GPS devices
    • Switching power supplies
    • Electronic test equipment
  • Features and Benefits:
    • High inductance stability
    • Low parasitic coefficients
    • Compact footprint for modern devices
  • Additional Details:
    • Inductance: 3.9nH
    • SMD/SMT compatible design
