Same model may have multiple batches, images only for reference.

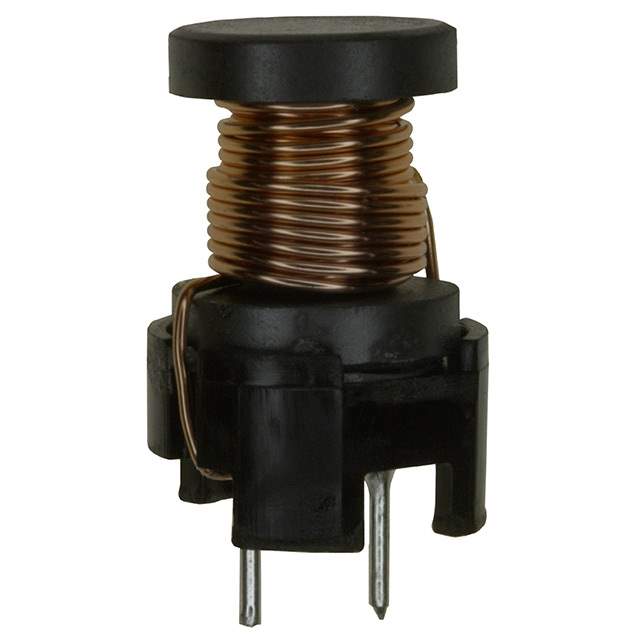

ELC-16B181L Real Image
Same model may have multiple batches, images only for reference.

ELC-16B181L

Part No ELC-16B181L
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 180UH 2.1A 115 MOHM TH / 180 µH Unshielded Wirewound Inductor 2.1 A 115mOhm Radial, Vertical Cylinder (Open)
Datasheet
ELC-16B181L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Product Status Obsolete
Type Wirewound
Inductance 180 µH
Tolerance ±10%
Current Rating (Amps) 2.1 A
Shielding Unshielded
DC Resistance (DCR) 115mOhm
Inductance Frequency - Test 10 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder (Open)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.906" (23.00mm)
Base Product Number ELC-16
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number ELC16B181L
Standard Package 2,000
Win Source Part Number 1327398-ELC-16B181L
Ultra Librarian 3D Model Ultra Librarian ELC-16B181L CAD Model

Description

The Panasonic Electronic Components ELC-16B181L is a wirewound inductor with a diameter of 0.630 inches (16.00mm) and an inductance of 180 µH.

  • DC Resistance: 115mOhm
  • Current Rating: 2.1 A
  • Mounting Type: Through-hole
  • Case/Package: Radial, vertical cylinder (open)
  • Tolerance: ±10%
  • Status: Obsolete
  • Packaging: Bulk
  • Standard Package: 2,000
