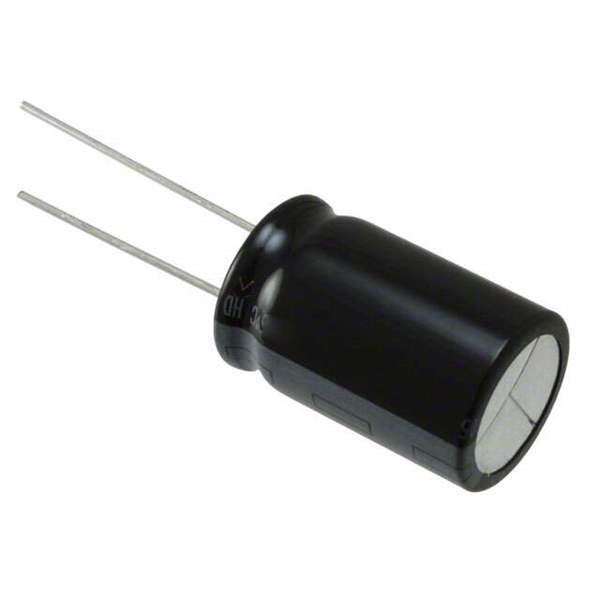

Same model may have multiple batches, images only for reference.

EEU-HD1E682

Name: EEU-HD1E682
Brand: Panasonic
SKU: 1339116
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEU-HD1E682
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 6800UF 20% 25V RADIAL / 6800 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	EEU-HD1E682 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	HD
Package	Bulk
Capacitance	6800 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.04 A @ 120 Hz
Ripple Current @ High Frequency	2.346 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-HD
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339116-EEU-HD1E682
Ultra Librarian 3D Model	Ultra Librarian EEU-HD1E682 CAD Model

Description

The EEU-HD1E682 is an aluminum electrolytic capacitor from Panasonic Electronic Components.

Series: HD
Packaging: bulk
Standard Package: 100 units
Capacitance: 6800 µF
Voltage Rating: 25V
Tolerance: ±20%
