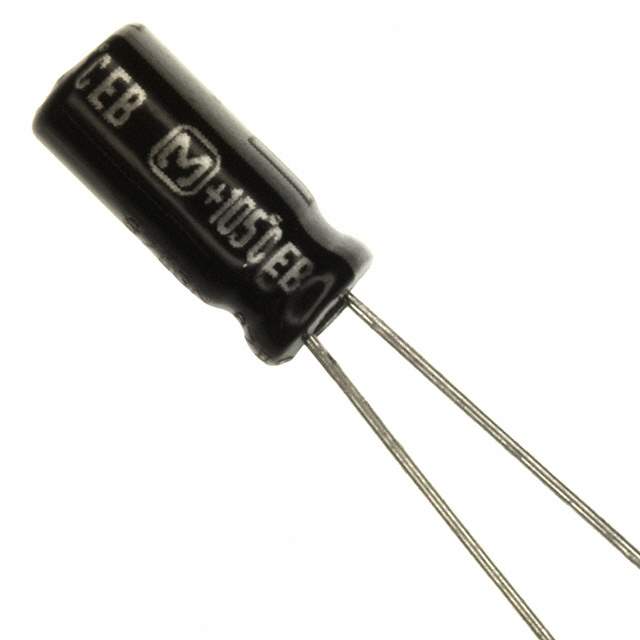

EEU-EB1A101S

Name: EEU-EB1A101S
Brand: Panasonic
SKU: 1034200
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEU-EB1A101S
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 10V RADIAL / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	EB-A
Package	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	66 mA @ 120 Hz
Ripple Current @ High Frequency	85.8 mA @ 100 kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-EB
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	P13455,EEUEB1A101S,Q4527613
Standard Package	200
Win Source Part Number	1034200-EEU-EB1A101S
Ultra Librarian 3D Model	Ultra Librarian EEU-EB1A101S CAD Model

Description

The EEU-EB1A101S is an aluminum electrolytic capacitor manufactured by Panasonic Electronic Components.

Capacitance: 100µF
Voltage Rating: 10V
Polarized: Yes
Mounting Type: Through Hole
Temperature Range: -40°C to 105°C
Lifetime: 5000 hours @ 105°C
Package: Radial, Can
Standard Package: 200
