Same model may have multiple batches, images only for reference.

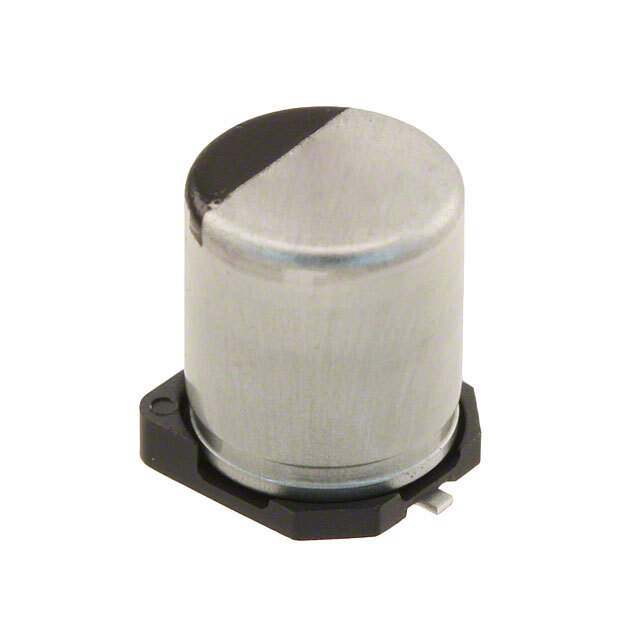

EEH-ZA1H330XP Real Image
Same model may have multiple batches, images only for reference.

EEH-ZA1H330XP

Part No EEH-ZA1H330XP
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 33UF 50V SMD / 33 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 240 mA @ 100 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P15444CT,P15444TR,P15444DKR,EEHZA1H330XP
Standard Package 900
Win Source Part Number 1328443-EEH-ZA1H330XP
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1H330XP CAD Model

Description

Panasonic Electronic Components EEH-ZA1H330XP is a hybrid aluminum-polymer capacitor with a capacitance of 33 µF and a voltage rating of 50 V.

  • Capacitance: 33 µF
  • Voltage Rating: 50 V
  • Application: Automotive
  • Rated: AEC-Q200
  • Land Size: 0.260" L x 0.260" W
  • Height: 0.315" (8.00mm)
  • ROHS3 Compliant: Yes
  • Temperature Range: -55°C to 105°C
  • ESR: 40mOhm
  • Ripple Current (100 Hz): 240 mA
  • Ripple Current (100 kHz): 1.6 A
