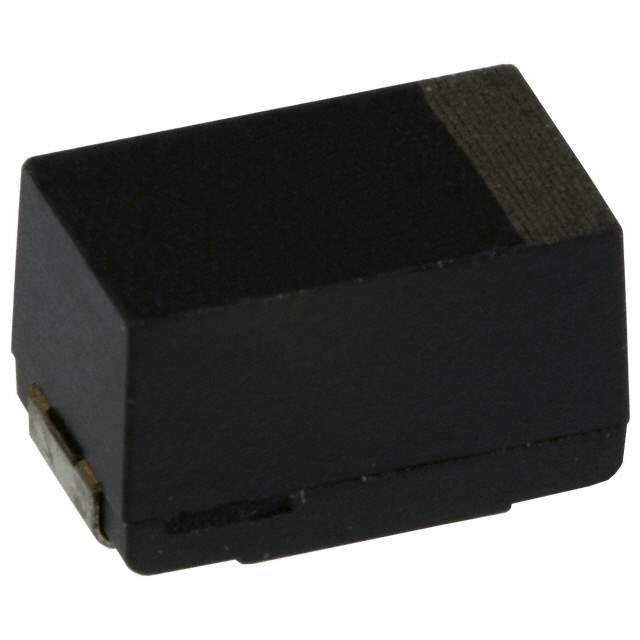

EEF-UE0D561LE Real Image
Same model may have multiple batches, images only for reference.

EEF-UE0D561LE

Part No EEF-UE0D561LE
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2V SMD  /  560 µF 2 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 7mOhm 1000 Hrs @ 105°C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap UE
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 2 V
ESR (Equivalent Series Resistance) 7mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.7 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.165" (4.20mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-UE
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE4499CT,EEFUE0D561LE,PCE4499TR,PCE4499DKR,Q6735982D
Standard Package 2,000
Win Source Part Number 1200302-EEF-UE0D561LE
Ultra Librarian 3D Model Ultra Librarian EEF-UE0D561LE CAD Model

Description

The Panasonic Electronic Components EEF-UE0D561LE is a polymer capacitor from the SP-Cap UE series.

  • Series: SP-Cap UE
  • Capacitance: 560 µF
  • Voltage Rating: 2 V
  • Mounting Type: Surface Mount
  • Standard Package: 2,000
  • Seated Height: 0.165" (4.20mm)
  • ESR: 7mOhm
  • Lifetime: 1000 Hrs @ 105°C
  • Ripple Current: 3.7 A @ 100 kHz
  • Application: General-purpose
  • Temperature Range: -40°C to 105°C
  • Status: Obsolete
  • Alternative Parts: EEFUE0D561LE
