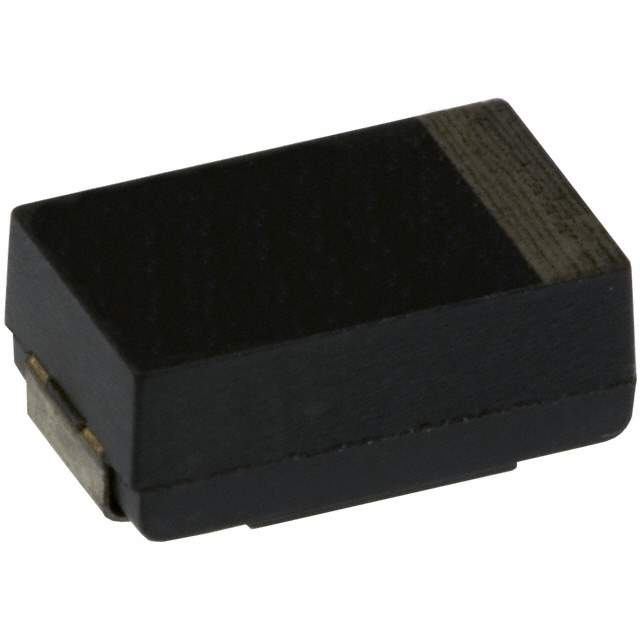

Same model may have multiple batches, images only for reference.

EEF-UD0D331LR

Name: EEF-UD0D331LR
Brand: Panasonic
SKU: 763599
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEF-UD0D331LR
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 330UF 20% 2V SMD
Datasheet	EEF-UD0D331LR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	SP-Cap UD
Type	Polymer
Capacitance	330μF
Tolerance	±20%
Voltage Rating	2V
ESR (Equivalent Series Resistance)	9 mOhm
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Applications	General
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum)	0.110" (2.80mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD
Package	2917 (7343 Metric)
Win Source Part Number	763599-EEF-UD0D331LR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UD
Introduction Date	September 25, 2008
ECCN	EAR99
Country of Origin	Japan, Singapore
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian EEF-UD0D331LR CAD Model

Description

The EEF-UD0D331LR is a polymer capacitor from Panasonic Electronic Components, with a capacitance of 330μF and a voltage rating of 2V.

Series: SP-Cap UD
Applications: General
Packaging: 2917 (7343 Metric)
Mounting: SMD
Temperature Range: -40°C to 105°C
ESR: 9 mOhm
Maximum Seated Height: 0.110" (2.80mm)
Tolerance: ±20%
Lifetime: 1000 Hrs @ 105°C
