Same model may have multiple batches, images only for reference.

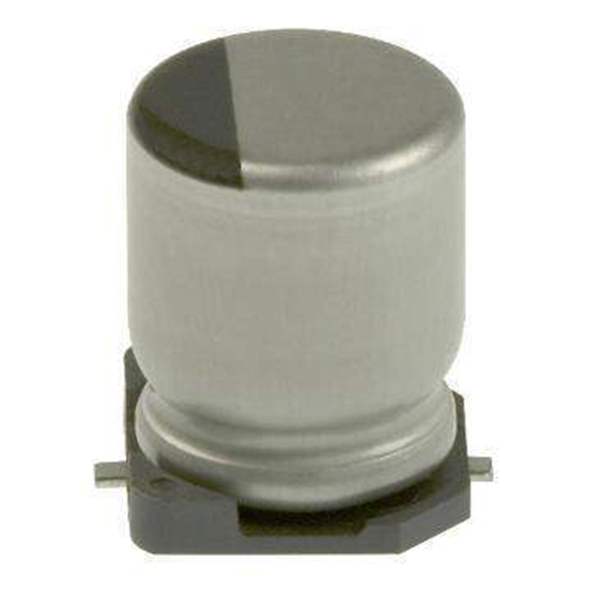

EEE-HB1V101AP

Name: EEE-HB1V101AP
Brand: Panasonic
SKU: WS1307718
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HB1V101AP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V SMD
Datasheet	EEE-HB1V101AP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Category	Capacitors Aluminum Electrolytic Capacitors
Part Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ripple Current @ Low Frequency	160 mA @ 120 Hz
Ripple Current @ High Frequency	272 mA @ 10 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Win Source Part Number	WS1307718-EEE-HB1V101AP
Ultra Librarian 3D Model	Ultra Librarian EEE-HB1V101AP CAD Model

Description

100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
