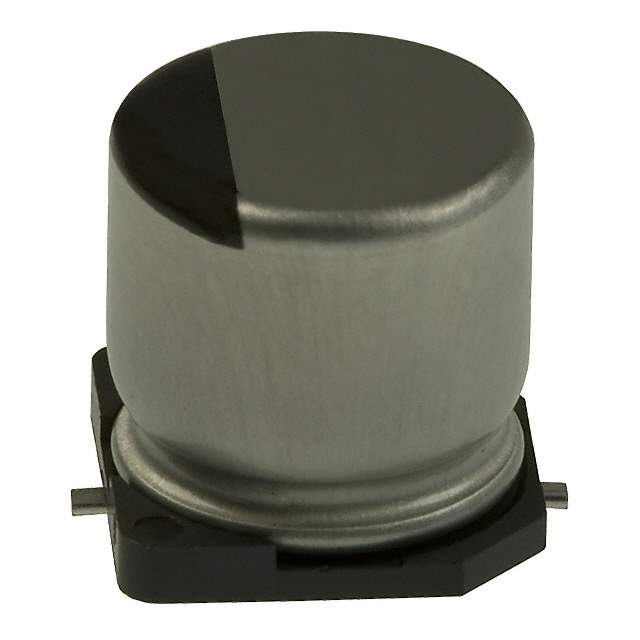

Same model may have multiple batches, images only for reference.

EEE-HA2A100P

Name: EEE-HA2A100P
Brand: Panasonic
SKU: 1381992
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HA2A100P
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 100V SMD / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic
Series	HA
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	55 mA @ 120 Hz
Ripple Current @ High Frequency	93.5 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-HA
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	500 pcs
Win Source Part Number	1381992-EEE-HA2A100P
Ultra Librarian 3D Model	Ultra Librarian EEE-HA2A100P CAD Model

Description

The HA series aluminum electrolytic capacitor from Panasonic is a reliable electronic component used in automotive applications.

Size/Dimension: 0.315" diameter (8.00mm)
Package: Tape and Reel
Capacitance: 10μF
Voltage Rating: 100V
Application: Automotive
AEC-Q200: Rated
Lifetime: 1000 hours @ 105°C
Mounting Type: Surface Mount
Status: Not for New Designs, Active
