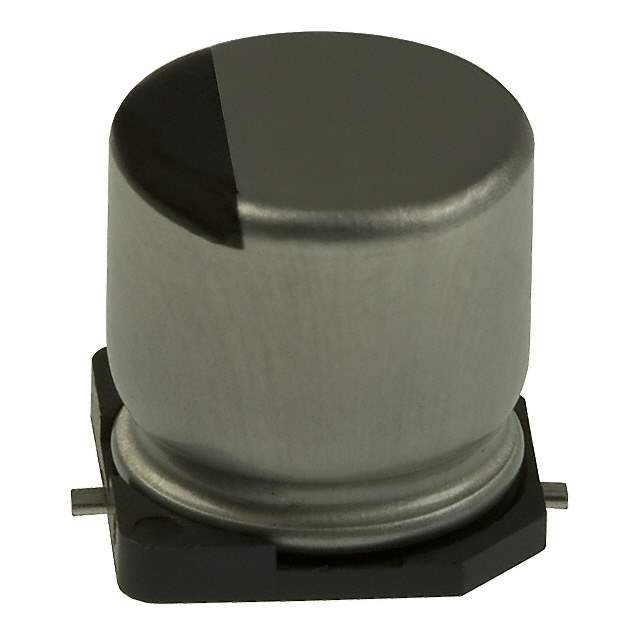

Same model may have multiple batches, images only for reference.

EEE-HA1H1R0R

Name: EEE-HA1H1R0R
Brand: Panasonic
SKU: 1307311
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-HA1H1R0R
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	HA
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	1 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	10 mA @ 120 Hz
Ripple Current @ High Frequency	17 mA @ 10 kHz
Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-HA
Other Names	PCE4212CT,PCE4212DKR,Q3205660,PCE4212TR,EEEHA1H1R0R
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307311-EEE-HA1H1R0R
Ultra Librarian 3D Model	Ultra Librarian EEE-HA1H1R0R CAD Model

Description

The EEE-HA1H1R0R is an aluminum electrolytic capacitor that belongs to the capacitors category.

Win Source Part Number: 1307311-EEE-HA1H1R0R
Mounting: Surface mount device (SMD)
Package: Radial can
Capacitance: 1 µF
Voltage Rating: 50 V
Polarized: Yes
Tolerance: ±20%
Manufacturer: Panasonic Electronic Components
Lifetime: 1000 hours @ 105°C
AEC-Q200 Rated: Yes
Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
