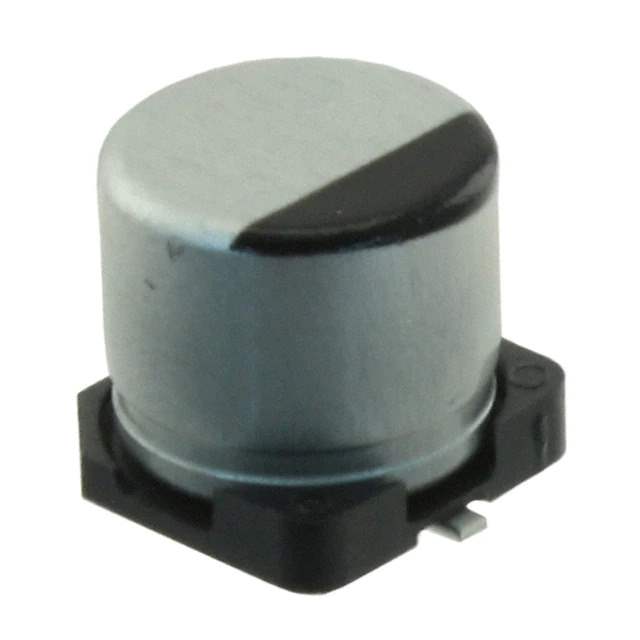

Same model may have multiple batches, images only for reference.

EEE-FT1V101AP

Name: EEE-FT1V101AP
Brand: Panasonic
SKU: 845385
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-FT1V101AP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic
Series	FT
Package	Tape & Reel
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	260mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	195 mA @ 120 Hz
Ripple Current @ High Frequency	300 mA @ 100 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FT
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	845385-EEE-FT1V101AP
Ultra Librarian 3D Model	Ultra Librarian EEE-FT1V101AP CAD Model

Description

The Panasonic 845385-EEE-FT1V101AP is an aluminum electrolytic capacitor with a capacitance of 100 µF from Panasonic.

Capacitance: 100 µF
Tolerance: ±20%
Rated Voltage: 35 V
Series: FT
Application: Automotive
Height: 0.240" (6.10mm)
Diameter: 0.248" (6.30mm)
Mounting: Surface mount
ESR: 260mOhm @ 100kHz
Lifetime: 2000 hours @ 105°C
Polarized: Yes
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
